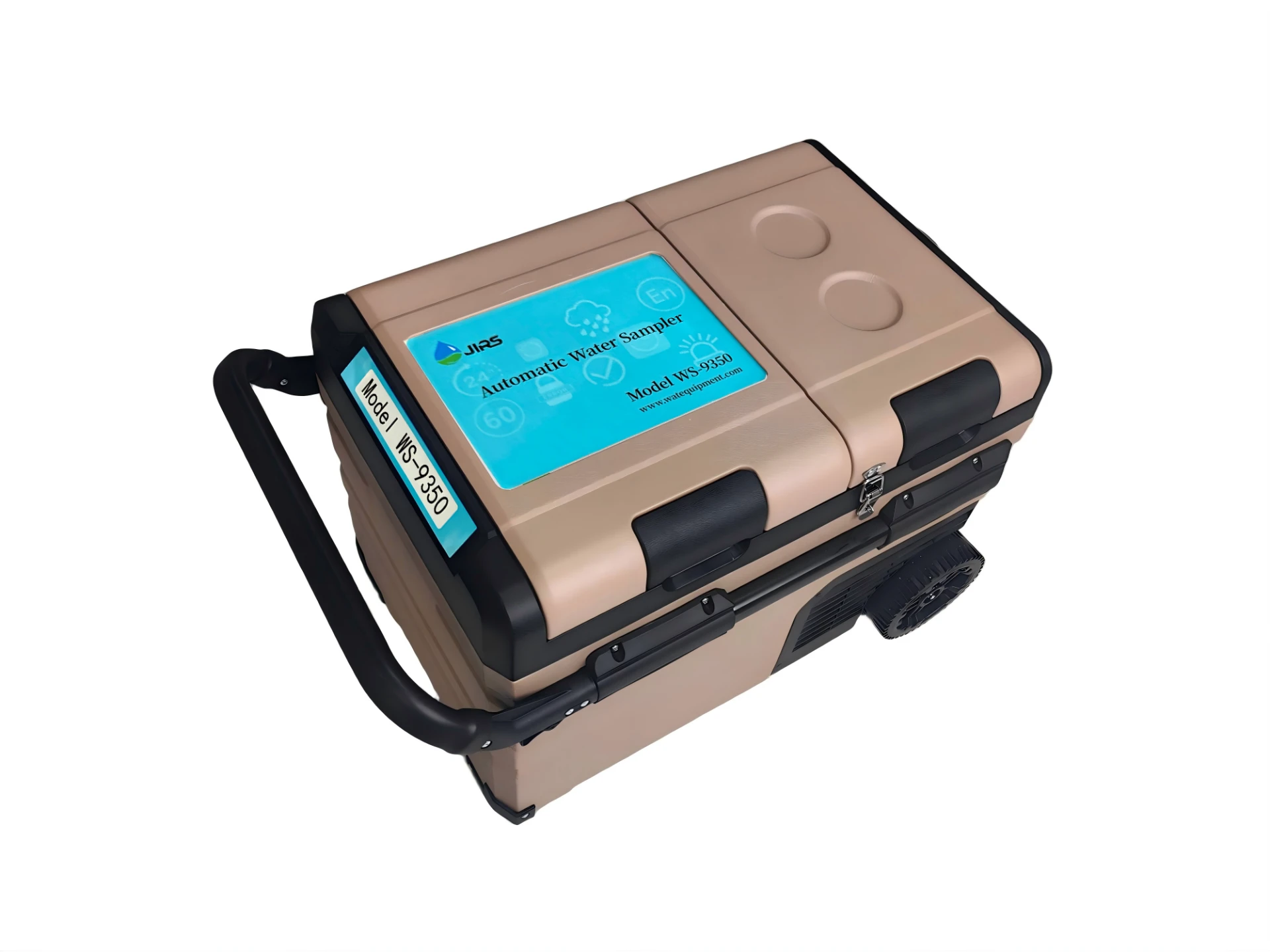

WS-9300/9350

The WS-9300/9350 is a professional-grade automatic portable water sampler engineered for rigorous field and industrial applications. Boasting ample sample capacity, it supports multiple sampling modes including time-proportional, flow-proportional, and external signal-triggered sampling. Core features include precise refrigerated storage (4±2°C) to preserve sample integrity, automatic tube rinsing and emptying to prevent cross-contamination, and a durable IP65-rated housing for reliable all-weather operation. Ideal for environmental monitoring, wastewater discharge testing, surface water sampling, and third-party detection projects. Equipped with flexible AC/DC power options and RS485 communication interface, it enables remote control and data tracing for versatile deployment scenarios.

Product Details

Contact Now

Product Details

Product Paramenters

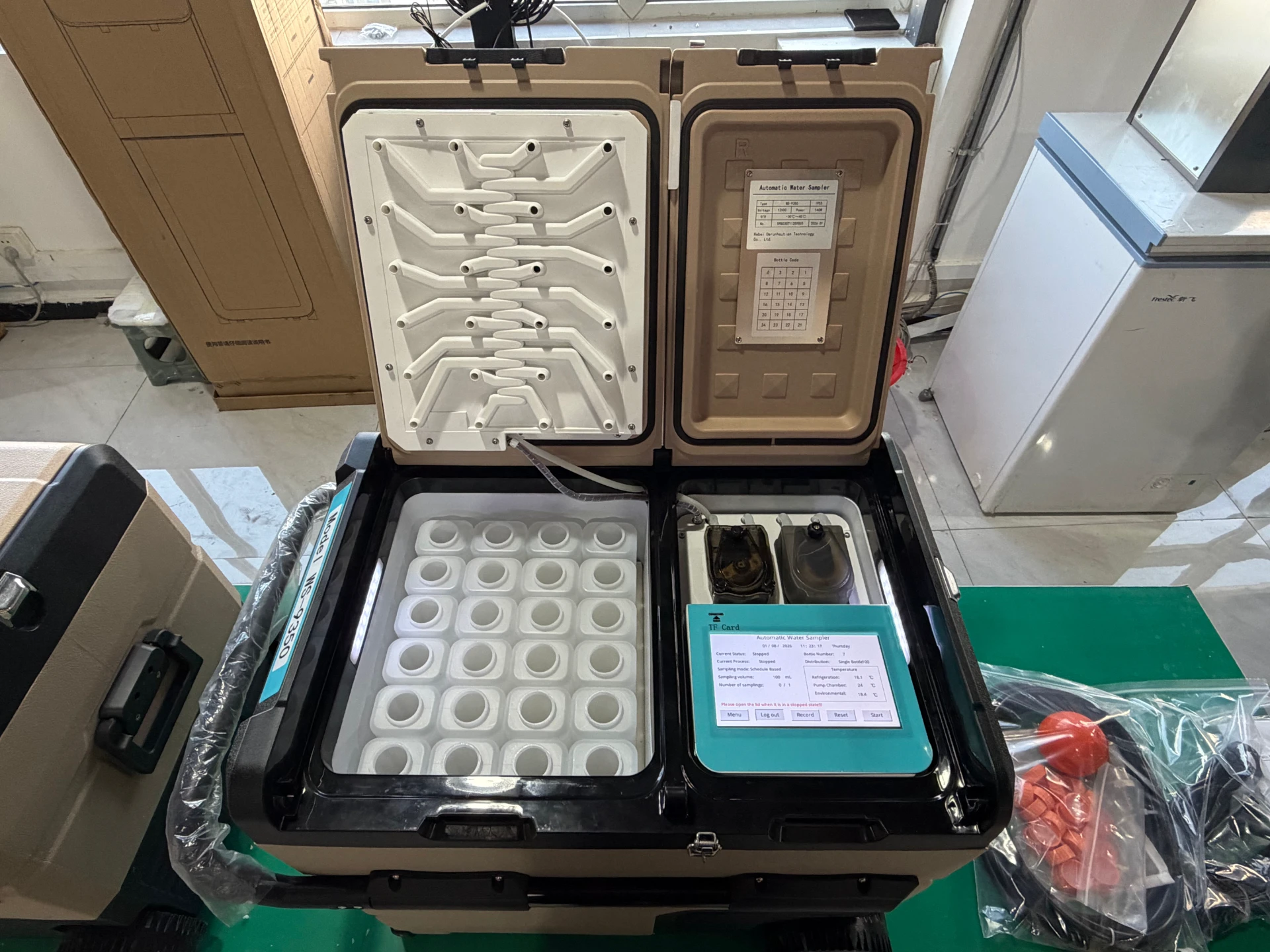

Sample Bottles	24, PE
Sampling Bottle Capacity	1000 mL

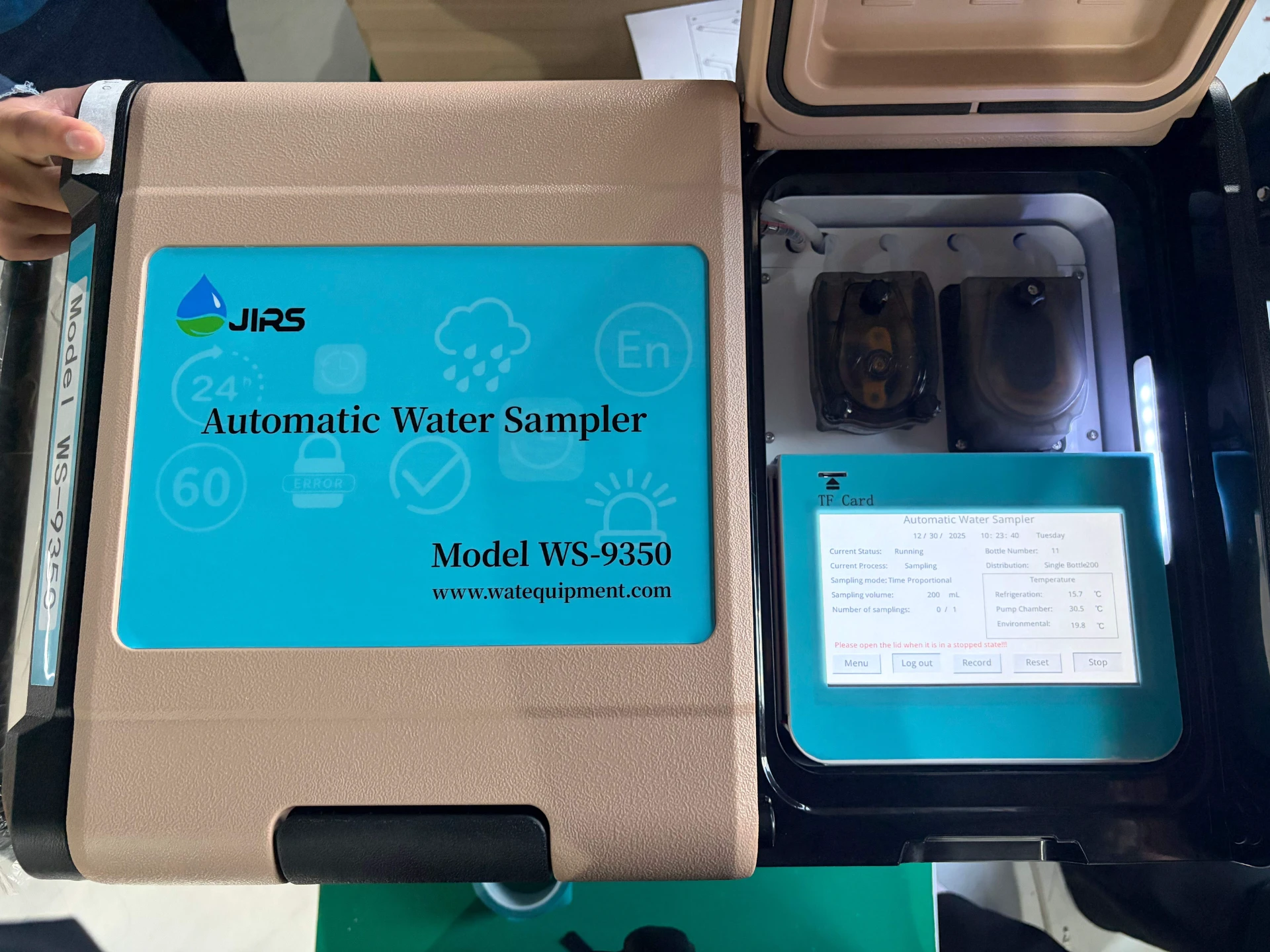

Screen Interface	7-inch color touchscreen, English interface
Timed Sampling Time Points	24 programmable time points
External Pump Delay	Programmable from 1 to 9999 minutes, in 1-minute increments
Sampling Interval	Programmable from 1 to 9999 minutes, in 1-minute increments
Single Sampling Volume	Programmable from 10 to 1000 mL, in 1-mL increments
Number of Mixed Samples	1 to 100
Number of Replicate Sample	1 to 5
Sampling Volume Error	±5%
Proportional Sampling Volume Error	±5%
Pump Tubing Type	Imported
Refrigeration Method	Compressed Mechanical refrigeration
Refrigerated box temperature control accuracy	(4±2)°C
Horizontal sampling distance	≥80m
Vertical sampling height	≥8m
Pipeline airtightness	≤-0.085MPa
Analog acquisition error	±0.04mA
System clock timing error	≤5s/24h
Equipment operating temperature	-30°C to 40°C
Operating humidity	≤85%RH
Insulation resistance	>20MΩ
Mean time between failures (MTBF)	≥1440h/cycle
Protection rating	IP55
Dimensions	Approximately 711mm × 460mm × 571mm (L × W × H)
Total weight	Approximately 27kg

Function Features

Multiple triggering modes	Time-proportional sampling, date-cycle sampling, flow-proportional sampling, level-proportional sampling, timed sampling, immediate sampling, and rain gauge-triggered sampling, with support for setting the day of the week;
Multiple sampling methods:	Single-shot sampling per bottle, multiple-shot sampling per bottle, and sampling multiple bottles at once;
Water sample refrigeration:	Equipped with a refrigerator for refrigerated storage of water samples;
Heating:	Both the refrigerator and the sampling pump area are equipped with heating modules to ensure normal operation in low-temperature environments.
Temperature control:	Displays the refrigerator temperature in real time in digital form, with adjustable upper and lower temperature limits;
Automatic pipe rinsing:	Use the pre-sampled sampler to rinse the pipe before sampling. Automatically rinses the pipes with water samples to prevent contamination, with a programmable number of rinse cycles;
Automatic Pipeline Drain:	Automatically drains water from the pipes before and after sampling to prevent sedimentation and clogging. The drain time is programmable, and the sampling head includes a filter or bag to reduce clogging;
Calibration:	Programmable drain, rinse, and sampling times, as well as the corresponding sample volume;
Password:	A system login password is available, which can be set to prevent program modification. The password can be disabled;
Component Test:	Manually control components such as the peristaltic pump while the sampler is stopped to determine their operating status;
External Pump:	Supports external pumps with a programmable start delay;
Access Control:	Mechanically controlled. Access control ensures safe use;
Power-off protection:	Parameter settings, system clock, and data records are not lost after the device is powered off and then back on;
Sampling record function:	Automatically stores sampling records, including sampling time, sampling mode, sampling volume, sampling method, sampling times, and sampling results, with a minimum of 5,000 records stored;
Alarm record function:	Automatically stores alarm records, including alarm time and alarm information, with a minimum of 2,000 records stored;
Sampling failure alarm function:	Features water overload detection, determines sampling success or failure based on sensor status, and generates a record in the sampling log if a sampling failure occurs;
Clock calibration Function:	Access the clock calibration page to set the sampler system time, including year, month, day, and hour, minute, and second;
Flow Recording (with flow meter installed):	Records instantaneous and cumulative flow by time;
Communication Interface:	Equipped with an external communication interface, the default interface type is RS485;
Overflow Prevention:	The system controls the total sampling volume to no more than 7000 mL to prevent water sample overflow;
Analog Input:	Equipped with 2 channels 4-20 mA analog input, including 1 flow meter channel, 1 level meter channel;
System Upgrade:	Supports system upgrades;
Peristaltic Pump Lifetime Reminder:	Allows you to set the peristaltic pump's operating time, prompting you to replace the pump tubing when it expires;
Multiple Power Supply Options:	Supports three power supply options: AC 110V/AC 220V (50/60Hz) +/-10% plug, DC 12V tinned (polarity marked) power cord, and car cigarette lighter plug (DC 12V).

Application Overview of JIRS Automatic Portable Water Sampler WS-9300/9350

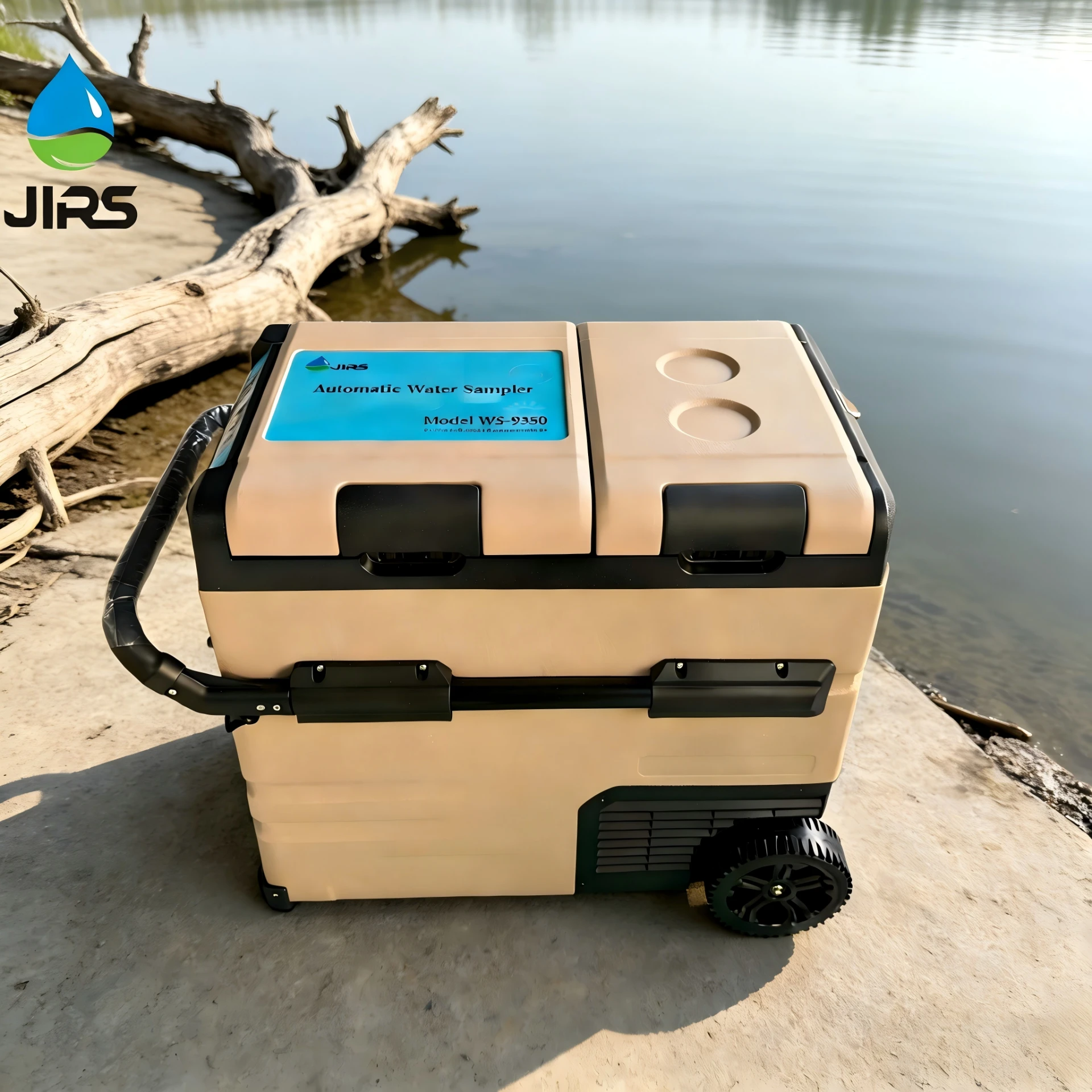

The JIRS WS-9300/9350 is a rugged, high-precision automatic portable water sampler designed for environmental, industrial, and research sampling needs. Ideal for wastewater treatment plants, environmental agencies, industrial facilities, and research institutions, it blends versatility and reliability to deliver consistent, compliant results.

Featuring 7 flexible sampling modes (time-proportional, date-cycle, flow-proportional, level-proportional, timed, immediate, rain gauge-triggered) plus weekday programming, it adapts to stormwater tracking, river/lake assessments, pollution source tracing, and high-frequency sampling. With 24 PE 1000mL bottles (7000mL overflow protection) and 3 sampling methods, it handles discrete and composite tasks effortlessly.

Sample integrity is guaranteed by (4±2)°C compressed refrigeration (preserving volatile/biological analytes) and dual heating modules (operating down to -30°C). Automatic pipe rinsing, pre/post-sampling drainage, and a filtered sampling head prevent contamination/clogs, while ±5% sampling error ensures laboratory-grade accuracy.

Built for field durability (IP55 rating, MTBF ≥1440h) and unmanned operation, it supports AC/DC/car power options, RS485 communication, and 2-channel 4-20mA input for flow/level meters. 5,000+ sampling records, 2,000+ alarm logs, and power-off protection simplify compliance, while a 7-inch color touchscreen and password security enhance usability. The WS-9350 offers optional wheels for portability.

Key Applications:

Municipal wastewater compliance & effluent monitoring
Industrial discharge tracking (chemical, pharmaceutical, mining, manufacturing)
Surface/groundwater quality assessment & watershed management
Stormwater runoff monitoring & hydrological research
Emergency spill response & pollution verification
Long-term unattended research & third-party audit sampling

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQS

Frequently Asked Questions FAQ About Water Sampler

Q: What sampling volumes and bottle configurations does the WS-9300/9350 support?

A: It comes with 24 PE bottles (1000mL each) for a total capacity of up to 7000mL (with overflow protection). The single sampling volume is programmable from 10–1000mL (1mL increments), and it supports 3 sampling methods: single-shot per bottle, multiple-shot per bottle, and simultaneous multi-bottle sampling.

Q: Can the sampler operate in extreme temperatures, and how is sample integrity maintained?

A: Yes. It works reliably in -30°C to 40°C environments—dual heating modules (for the refrigerator and sampling pump) ensure low-temperature operation, while compressed mechanical refrigeration keeps samples at (4±2)°C to preserve volatile organics and biological analytes. Automatic pipe rinsing and drainage also prevent cross-contamination.

Q: What power supply options are available, and is it suitable for unmanned field use?

A: It supports three flexible power sources: AC 110V/220V (50/60Hz), DC 12V (tinned power cord), and car cigarette lighter (DC 12V)—perfect for remote or off-grid sites. With RS485 communication, 2-channel 4-20mA input (for flow/level meters), and power-off protection (no data loss), it’s fully equipped for long-term unattended monitoring.

Q: How many sampling and alarm records can the sampler store, and are they exportable?

A: It automatically saves a minimum of 5,000 sampling records (including time, volume, mode, results) and 2,000 alarm records (time + details). The records are retained even after power-off, and the RS485 interface enables integration with SCADA systems for data export and remote access (compatible with most industrial monitoring platforms).

Q: Is the WS-9300/9350 easy to maintain, and does it have self-diagnostic features?

A: Yes. Key maintenance-friendly features include: a peristaltic pump lifetime reminder (alerts for tube replacement), manual component testing (to check pump/valve status), and a filtered sampling head (reduces clogging). It also has a sampling failure alarm (water overload detection) and 2,000+ alarm logs for quick troubleshooting—no professional technical background is required for basic operation.
