Field Notes: Why the PH-TRA-600 is showing up in so many water plants

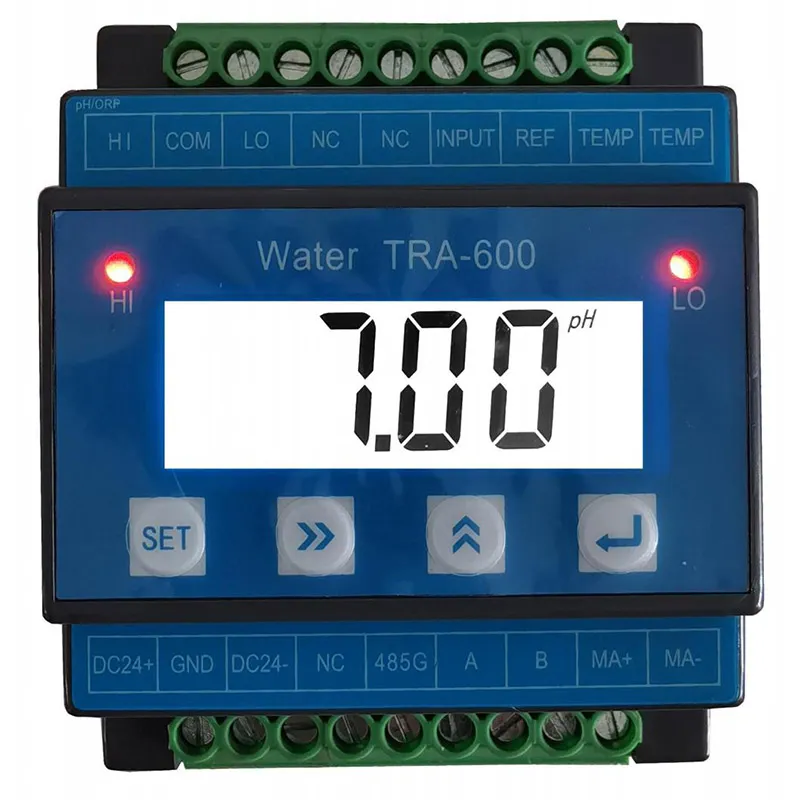

If you spend time in water treatment rooms (I do), you notice certain instruments become, well, fixtures. Lately, the PH-TRA-600 online pH transmitter keeps popping up—from compact RO skids to foul-smelling industrial wastewater pits. It’s not flashy. But it is practical: fast to install, three-point calibration with auto buffer recognition, high/low relay control, and isolated 4–20 mA or RS485. That mix hits real-world needs.

What’s driving the trend

Across the industry, operators want fewer headaches: fewer calibrations, stable signals, and simple control logic for dosing. Regulatory pressure hasn’t eased either—reporting accuracy matters. The PH-TRA-600 leans into that: it toggles pH/temperature, supports 3-point calibration (classic pH 4.00/7.00/10.00, auto-identified), and its RS485 Modbus option plays nicely with mixed-brand PLCs. To be honest, that last bit is underrated.

Specifications at a glance

Below is an at-a-glance spec overview (values are typical; real-world use may vary):

Process flow, materials, and testing

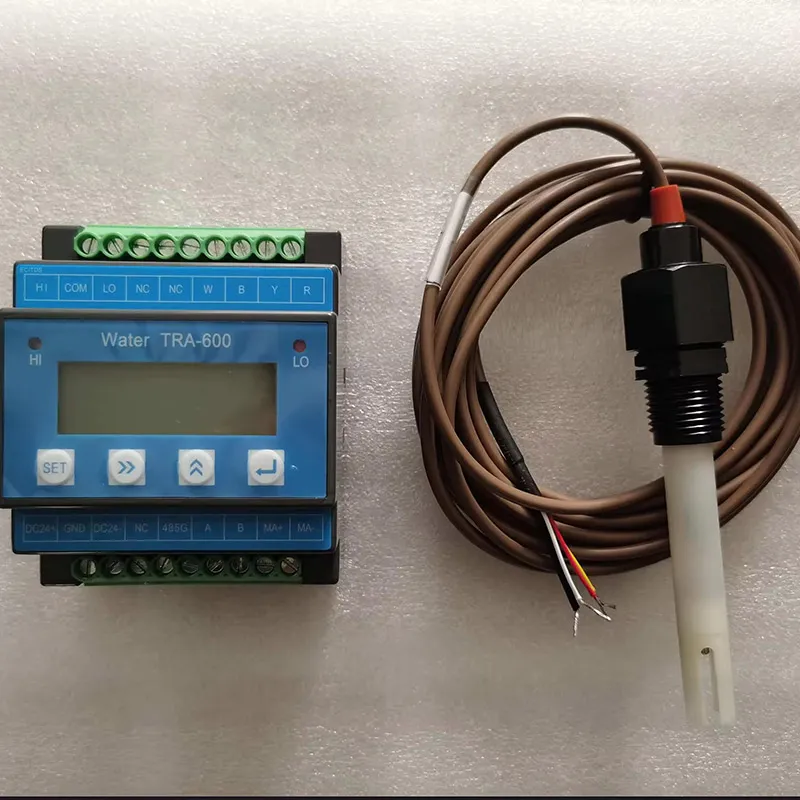

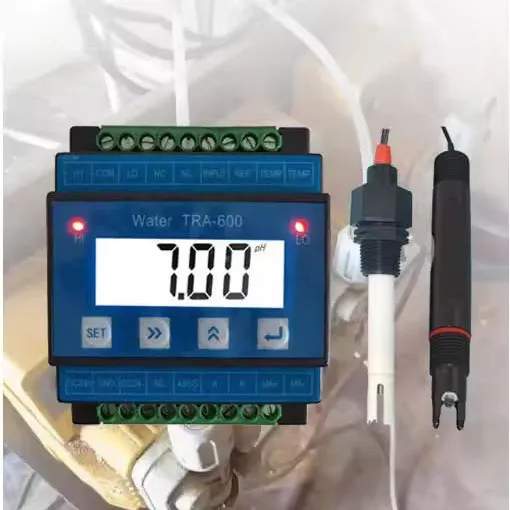

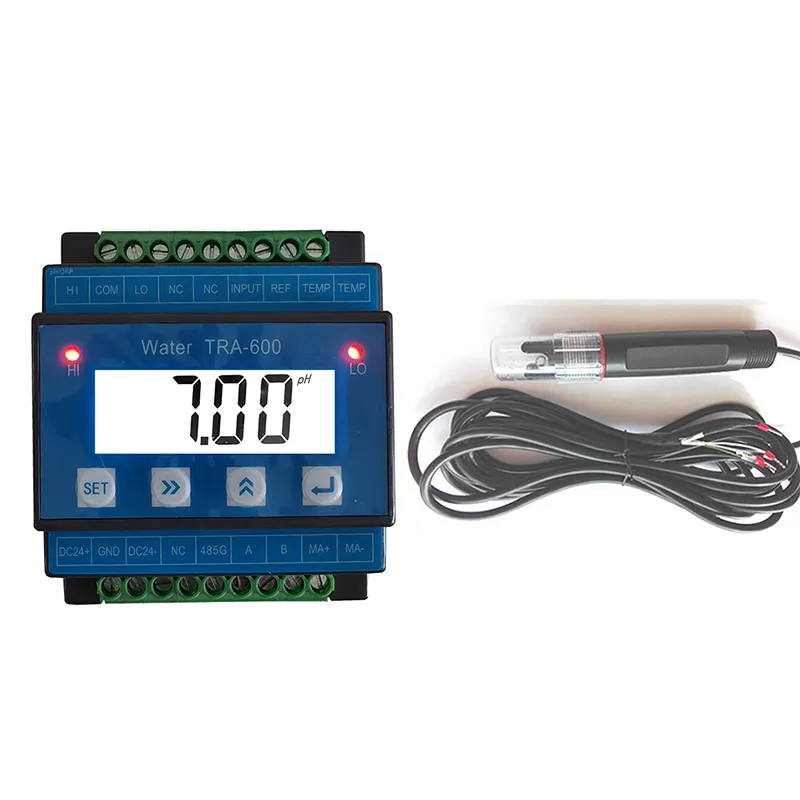

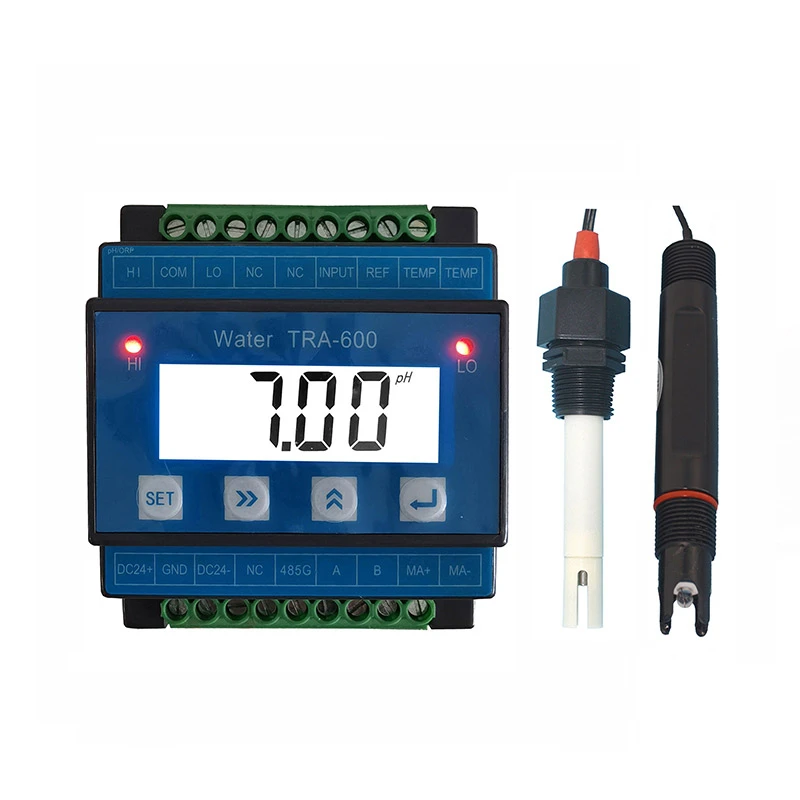

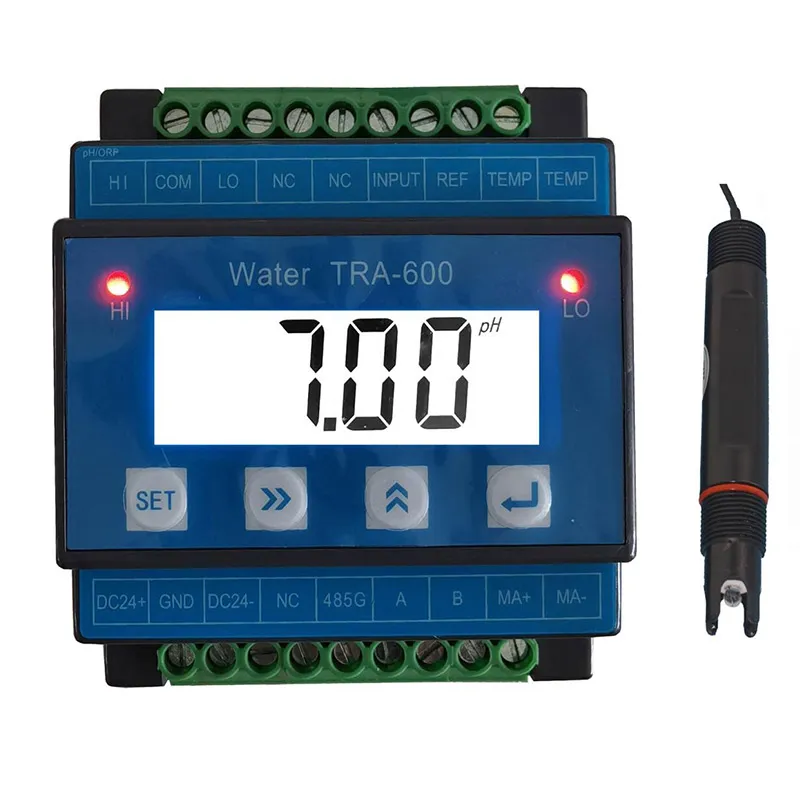

A typical deployment goes like this: choose a compatible glass or PTFE-junction sensor, mount the transmitter (panel or wall), wire 4–20 mA/RS485 to the PLC, set relay thresholds for dosing pumps, then run a 3-point calibration with fresh buffers at 25°C. Many customers say the auto buffer recognition saves time—less menu fumbling.

Materials: the PH-TRA-600 housing is a robust polymer blend suited to wet rooms; sensors vary (glass bulb, ceramic or PTFE junction). Life expectancy: around 12–18 months for municipal water; harsher chem effluent may be closer to 6–12 months—nothing shocking there. Testing typically references ISO 10523 and ASTM D1293; I’ve also seen plants align with EPA 150.1 for reporting. EMC-wise, buyers often ask for IEC 61326 conformity statements.

Application scenarios and advantages

• Municipal water/WWTP: aeration basins, final effluent checks.
• Industrial wastewater: textile, plating, pulp & paper; relay-based neutralization control.
• RO/boiler makeup: feed protection, CIP verification.
• Chemical batching: pH endpoint monitoring with RS485 feedback.

Advantages? Stable signal, simple menus, and—surprisingly—good noise immunity when the analog loop is properly isolated. It seems that maintenance is mostly sensor-side, not the transmitter.

Vendor comparison (quick look)

If you need a dependable, cost-conscious pH controller with straightforward outputs, the PH-TRA-600 competes well.

Customization and origin

Custom options often requested: RS485/Modbus mapping tweaks, relay setpoint logic (latching vs. window), enclosure kits, and sensor body (glass vs. rugged PTFE). Origin: No.188, Fengshou Road, Chang'an district, Shijiazhuang City, Hebei Province China 050041.

Case notes and compliance

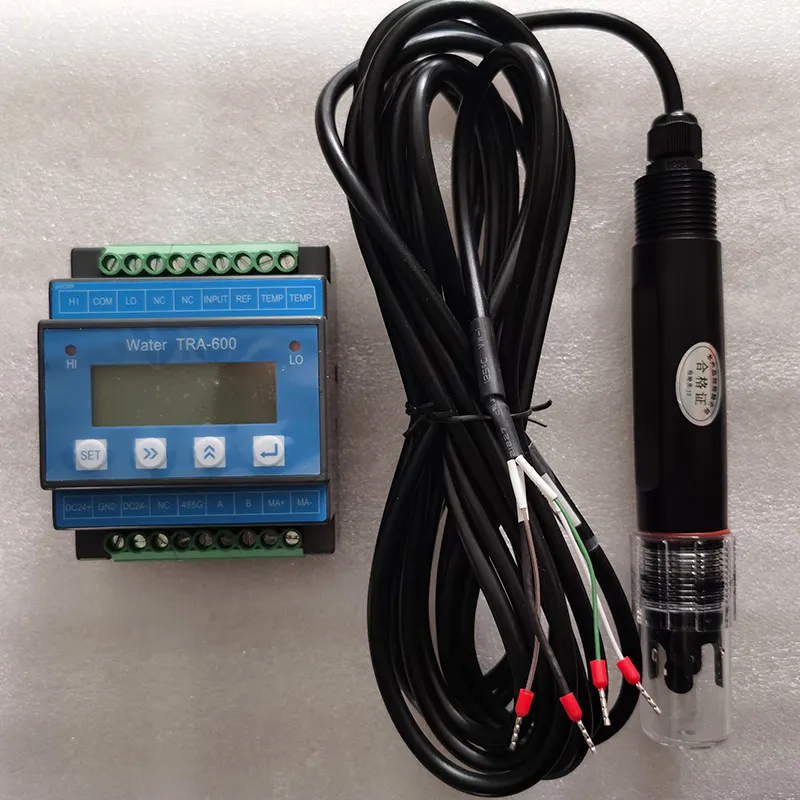

Case 1: A textile effluent line ran the PH-TRA-600 with a PTFE-junction probe; weekly drift stayed within ≈0.03 pH over a 30-day trial (buffers verified to ISO 10523). Case 2: A small brewery used relay outputs to dose caustic during CIP—simple, safe, and cheap to maintain.

Common references: ISO 10523, ASTM D1293, and EPA 150.1 for pH. For digital comms, Modbus Application Protocol (RTU) is the usual play. Certifications (e.g., CE/EMC) may be provided upon request—ask for the latest DoC and EMC test summary (IEC 61326).

Authoritative citations

1. ISO 10523: Water quality — Determination of pH.
2. ASTM D1293: Standard Test Methods for pH of Water.
3. US EPA Method 150.1: pH, Electrometric.
4. Modbus Organization: Modbus Application Protocol v1.1b.
5. IEC 61326: Electrical equipment for measurement, control and laboratory use — EMC requirements.
