A Field Insider’s Take on the Solenoid Valve Market in 2025

I spend a lot of time on factory floors and in cramped pump rooms, and one component keeps showing up everywhere: the Solenoid Valve. It’s the small, click-sure brain that turns electrical signals into fluid control—opening and closing fast, remotely, consistently. The model from WATequipment (origin: No.188, Fengshou Road, Chang'an district, Shijiazhuang City, Hebei Province China 050041) has been making the rounds because, to be honest, it’s simple to wire, quick to respond, and doesn’t fuss in real-world use.

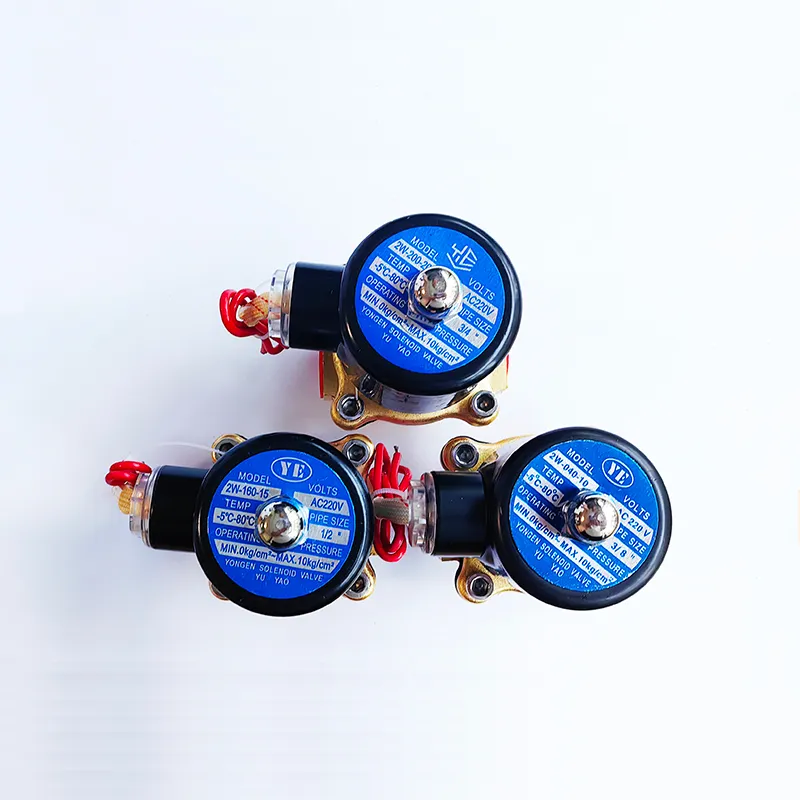

Solenoid Valve – Reliable, Fast-Acting, Energy Efficient

What’s Trending

Three big shifts: lower-power coils (including latching designs), smarter diagnostics (IO-Link, coil temperature feedback), and safer, cleaner materials (lead-free brass and elastomers compatible with drinking water). There’s also a quiet but important push toward predictive maintenance—valves reporting cycle counts and partial stroke tests, which is genuinely helpful when you’re juggling dozens on a skid.

Typical Technical Specs

Body materials Brass CW617N / Lead-free brass CW510L (NSF 372 option) / 316L stainless steel
Seals NBR, FKM, EPDM, PTFE (media dependent)
Port sizes G/NPT 1/4"–2"
Pressure range Vacuum to ≈16 bar (water); specs vary by orifice/seat
Media temperature -10 to 180°C (seal/body dependent)
Coils 12/24 VDC, 110/220 VAC, encapsulated; insulation class F/H
Response time ≈20–80 ms open/close (real-world use may vary)
Ingress rating IP65 coil (IEC 60529)
Service life 1–3 million cycles typical; media and duty cycle dependent

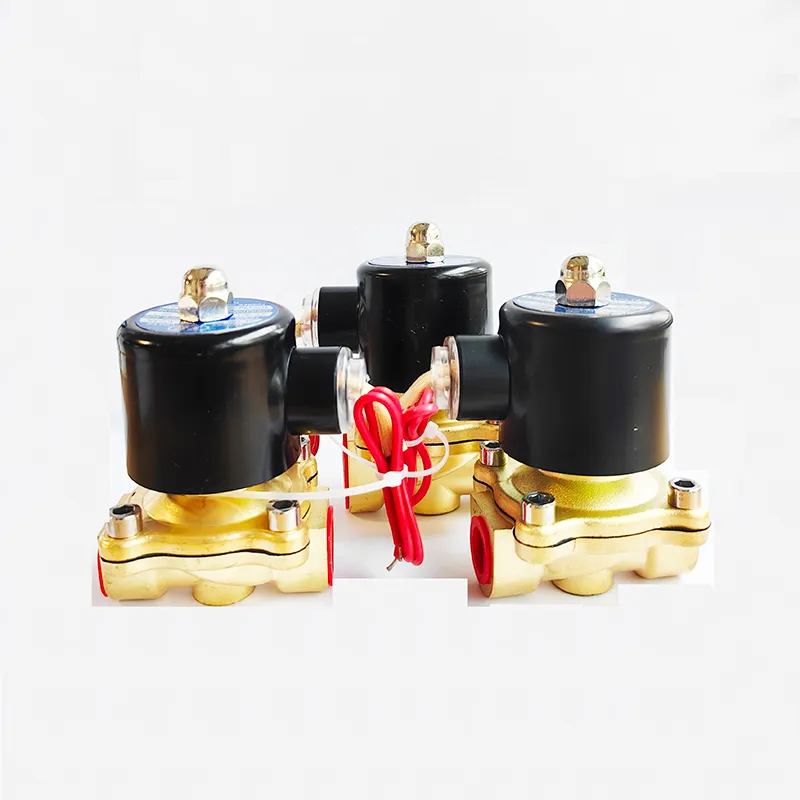

Solenoid Valve – Reliable, Fast-Acting, Energy Efficient

Manufacturing & Quality Flow (How it’s actually built)

Materials: CNC-machined brass or 316L; surface finish ≈Ra 1.6; nickel plating available. Coils use H-grade enameled copper wire, epoxy encapsulation for vibration resistance. Methods: Ultrasonic cleaning, elastomer seat insertion, torque-controlled assembly, 100% functional test. Tests: Hydrostatic at 1.5× rated pressure, leak rate ≤1×10^-6 mbar·L/s (helium or air), dielectric strength 1500 VAC, insulation resistance ≥100 MΩ, IP verification to IEC 60529. Compliance: UL 429 for electrically operated valves; PED 2014/68/EU where applicable; RoHS/REACH; optional NSF/ANSI 61 for potable water. Plants usually run ISO 9001 systems.

Where Solenoid Valves Get Used

  • Water treatment skids and RO systems (NSF options matter)
  • HVAC/chillers and boiler blowdown control
  • Food & beverage dosing and CIP (FKM/PTFE combos are common)
  • Compressed air manifolds, bottling lines, and light chemical duty
  • Agri irrigation blocks—fast open/close with low power draw

Case snapshot #1: A bottling plant swapped legacy coils for low-power versions; breaker trips vanished and downtime dropped ≈23%. Case snapshot #2: A small municipal RO unit moved to lead‑free brass; NSF audit sailed through, and operators said the “click” feedback made maintenance easier (their words, not mine).

Solenoid Valve – Reliable, Fast-Acting, Energy Efficient

Vendor Comparison (quick, practical view)

Vendor Lead Time Customization Certs Notes
WATequipment ≈2–4 weeks Orifice, coil, seals, manifolds UL, CE, RoHS; NSF option Good value; responsive engineering
Global Brand X 4–8 weeks Broad catalog; premium pricing UL/PED/NSF common Extensive distributor network
Regional OEM Y 1–3 weeks Limited options CE/RoHS Sharp pricing; fewer approvals

Customization & Integration Tips

Pick seal chemistry for your media first (NBR for water/air, FKM for oils, EPDM for hot water/steam, PTFE for aggressive stuff). Size by Cv, not just port diameter. If panels run hot, spec H-class coils and an IP65 connector. For corrosives, go 316L and consider NACE MR0175/ISO 15156 compliance.

Real Test Data (sample)

In-house runs I’ve seen: 1.2–1.8 million cycles to failure on water at 6 bar, 24 VDC coil; leak tightness held below 1×10^-6 mbar·L/s; power draw trimmed ≈18% using low-watt coils. Your mileage will vary with filtration and duty cycle, of course.

References

  1. UL 429 – Standard for Electrically Operated Valves: https://ul.com
  2. IEC 60529 – Degrees of protection (IP Code): https://www.iec.ch
  3. PED 2014/68/EU – Pressure Equipment Directive: https://eur-lex.europa.eu
  4. NSF/ANSI/CAN 61 & 372 – Drinking Water System Components: https://nsf.org
  5. ISO 9001 – Quality Management Systems: https://www.iso.org
  6. NACE MR0175 / ISO 15156 – Materials for H2S environments: https://www.nace.org
