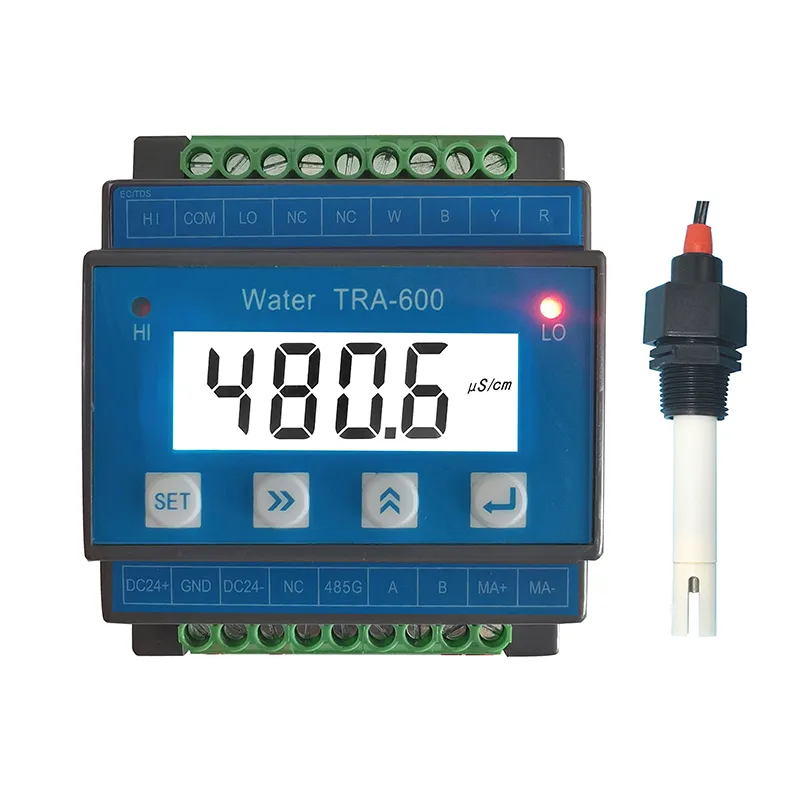

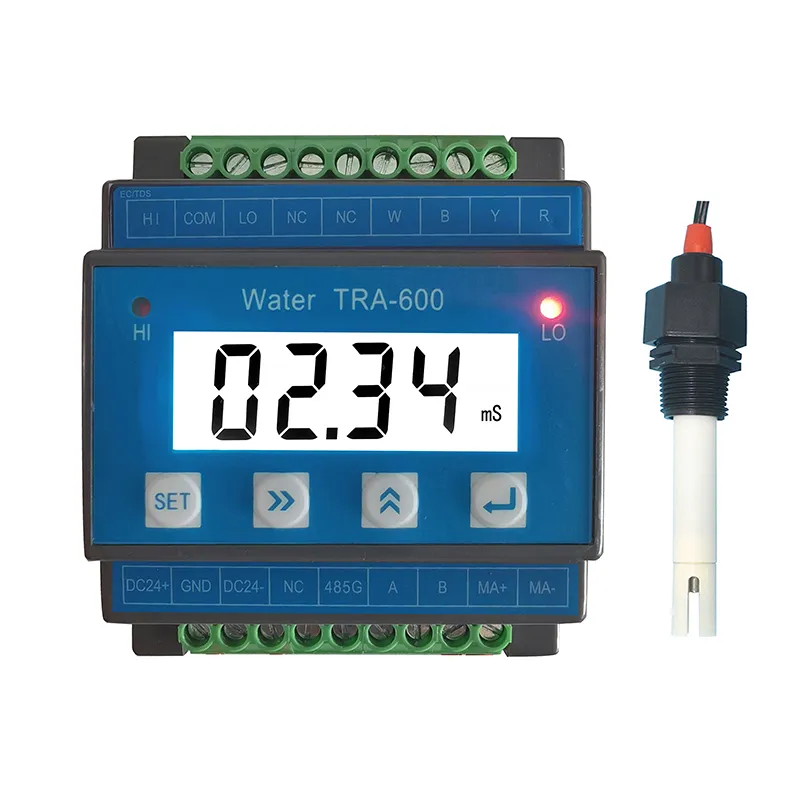

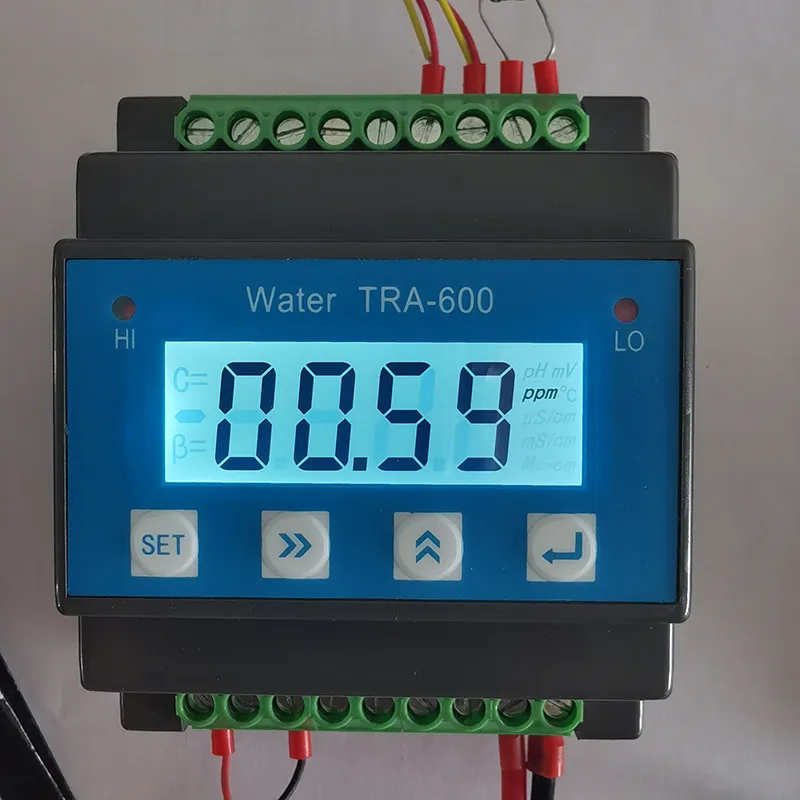

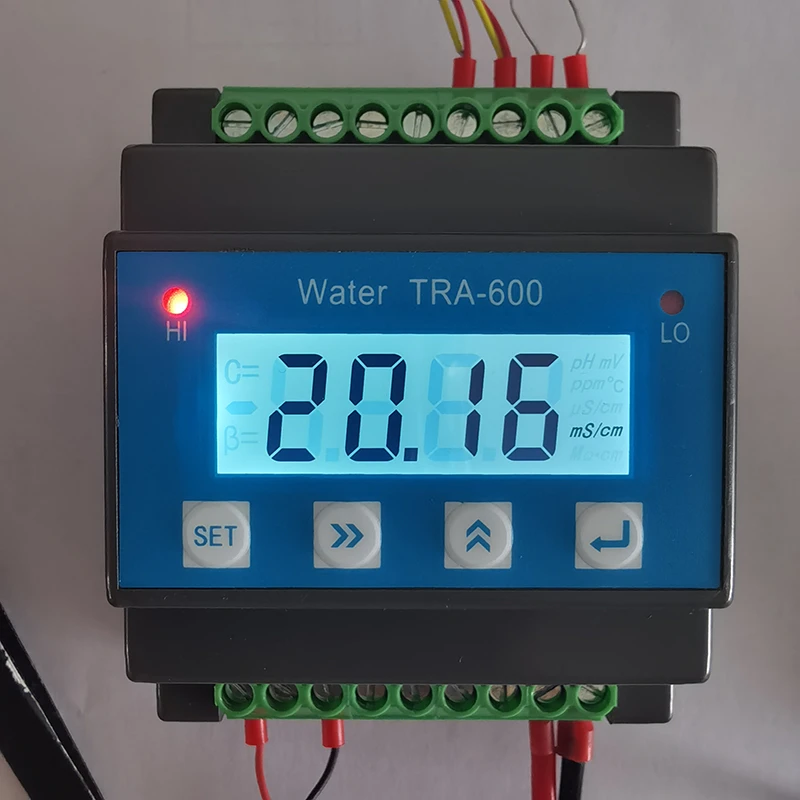

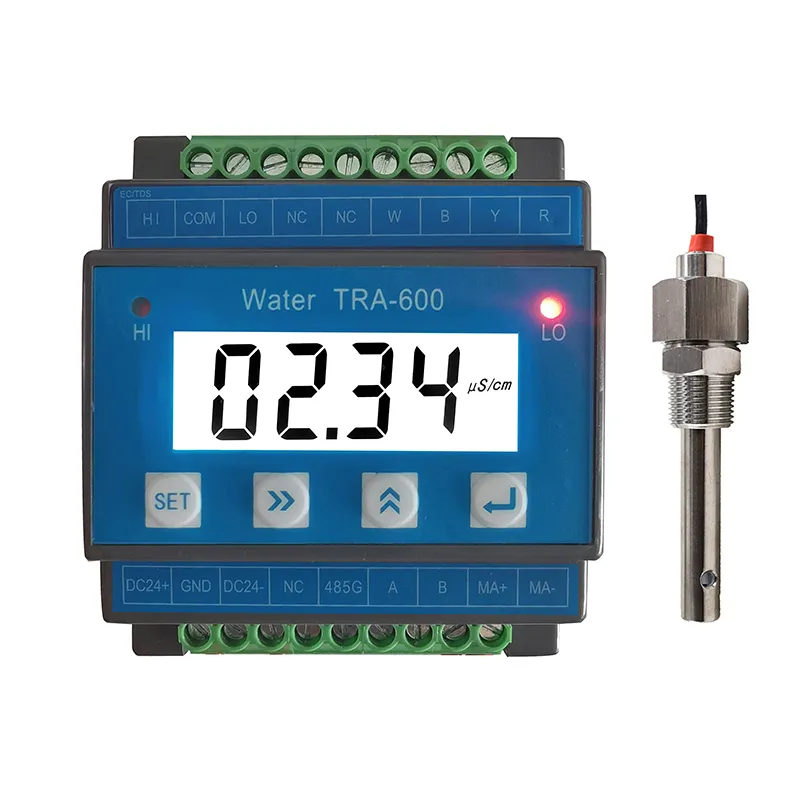

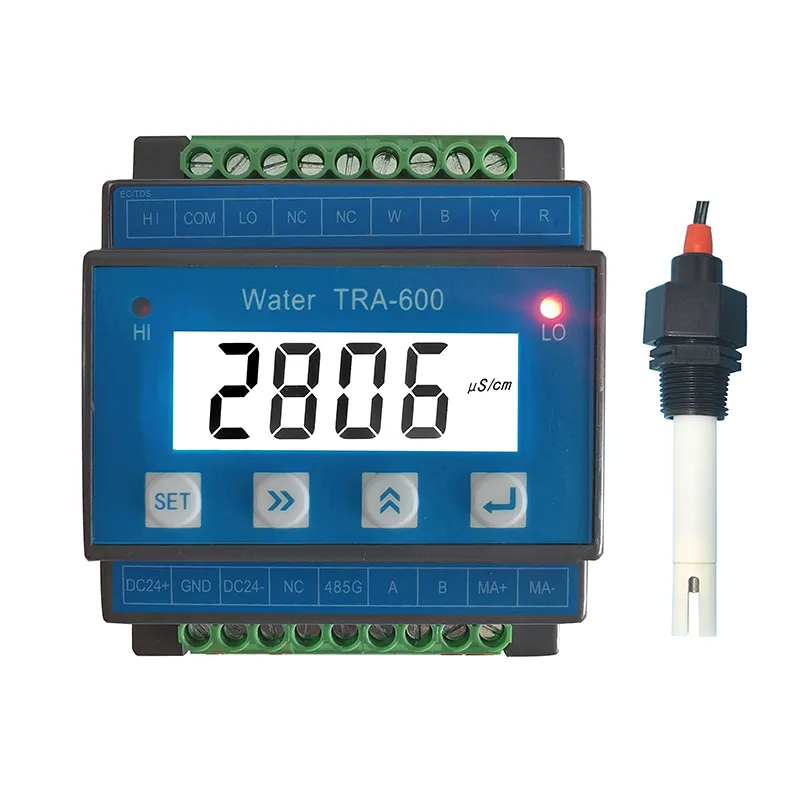

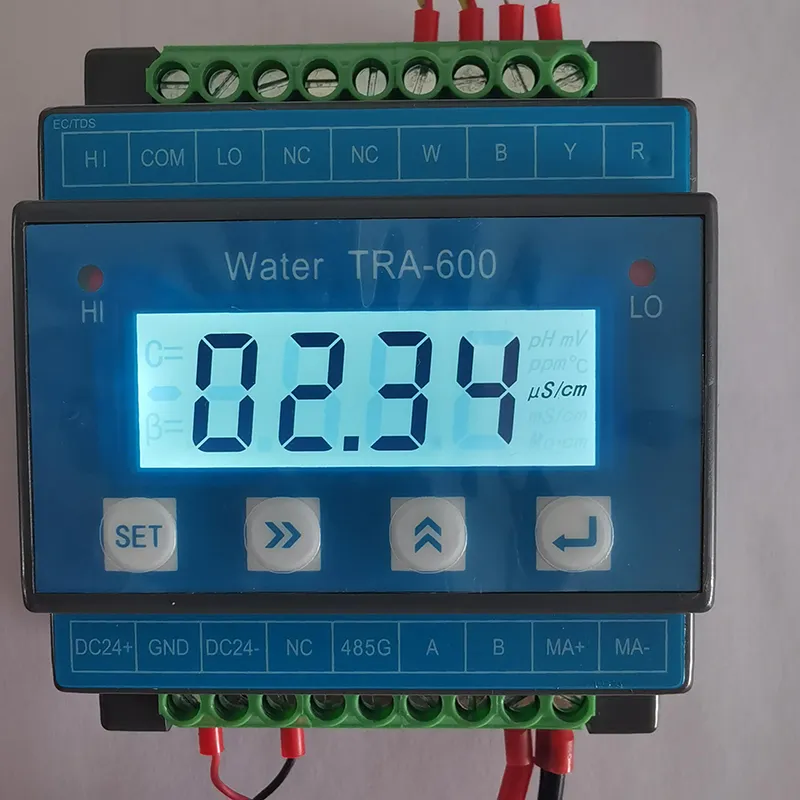

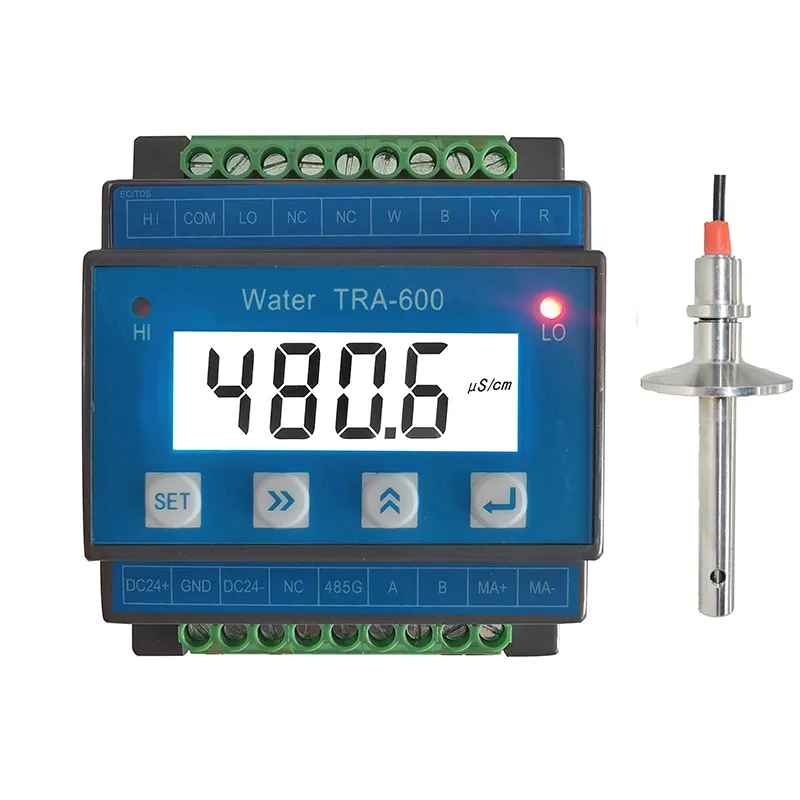

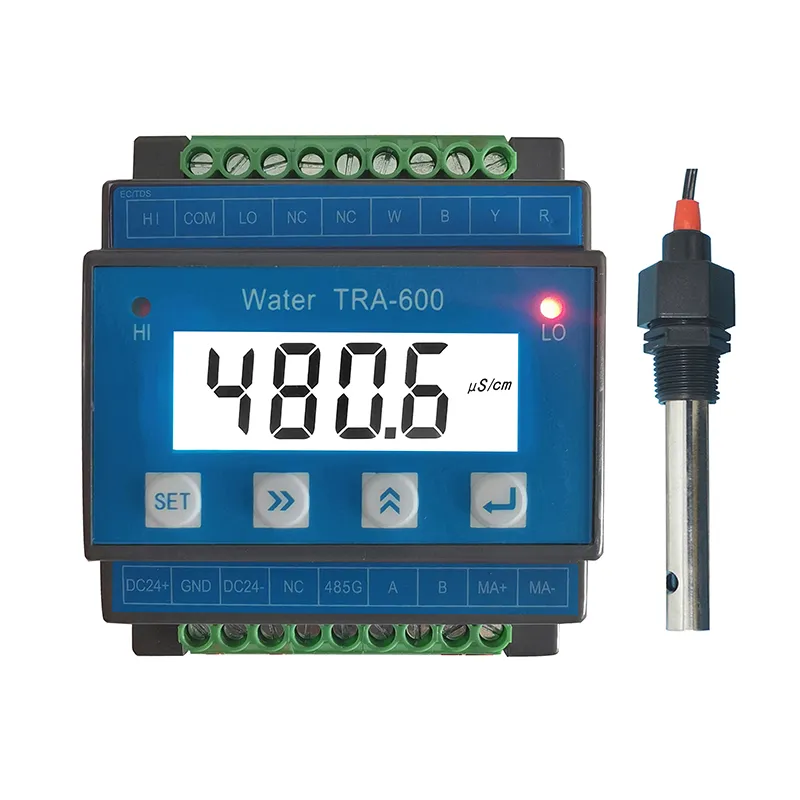

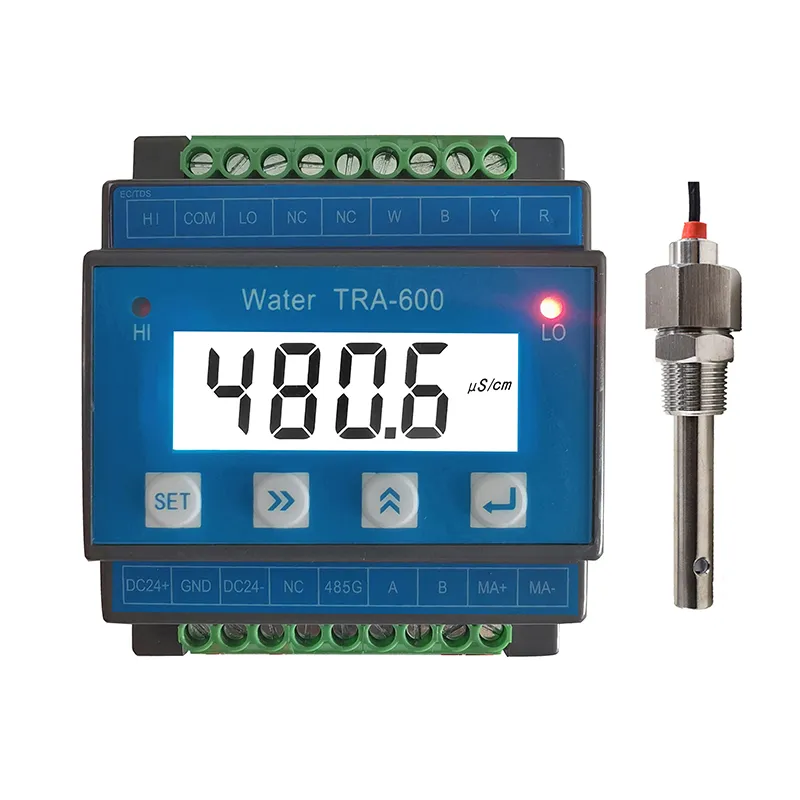

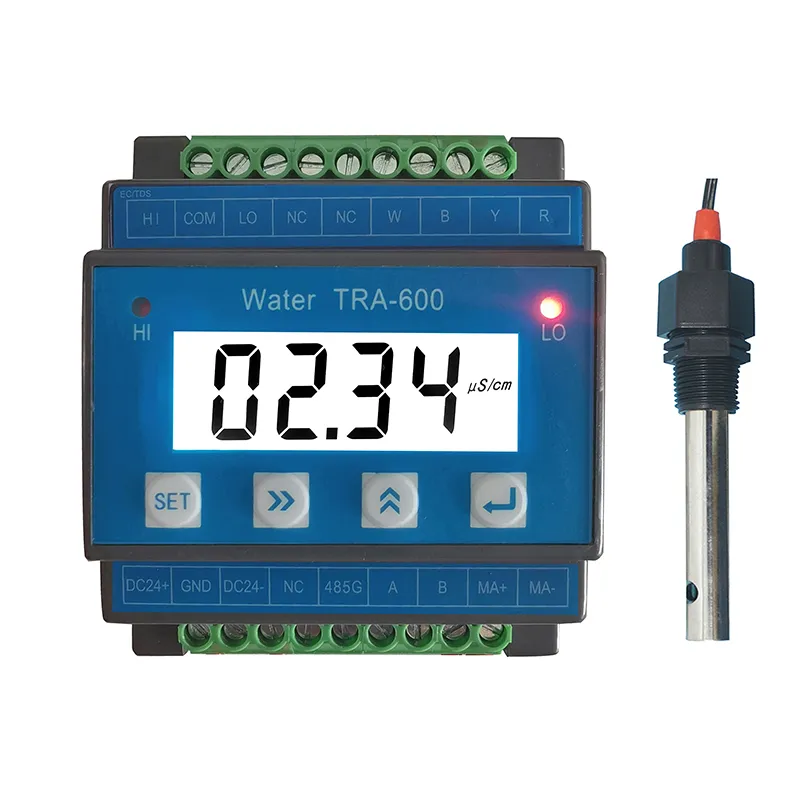

EC/TDS-500/600

이 장비 시리즈는 전도도를 측정하고 제어하기 위한 산업용 온라인 장비입니다. 이는 약국, 화학 산업, 전자 산업, 식품 산업 및 음료 산업 분야의 순수 측정 및 제어에 널리 적용됩니다.

Product Details

제품 세부정보

Contact Now

지금 연락하세요

제품 세부정보

기술적인 성과

  EC/TDS-500

EC./TDS-600

최대 제어 출력

절연 4-20mA/RS485 옵션

---



측정 범위 0~200uS/cm□ 2000uS/cm□, 0~20mS□, 0~200mS□ 0~2000ppm□, 0~5000ppm□,
표시 모드 LCD
정확성 1.5%(FS)
안정 ±2×10-3(FS)/24h
작동 압력 0~0.5MPa
매체의 온도 0~50℃
온도 보상 25℃를 기준점으로 디지털 온도. 보상
출력 전류/전압 절연 활성 출력 4-20mA(≤ 500Ω)
제어 출력 최대 및 최소(상시 개방) 접점 출력.
접점 용량 3A/AC250V(저항 부하 포함)
제공되는 전극 1.0cm-1 전극(0.1cm-1 상수 옵션)
케이블 길이 4.5m 또는 기타 합의      m
환경 조건 온도: 0~50℃
습기 85%RH 이하
전원공급장치 AC 220V±10% 50/60Hz □ AC 110V±10% 50/60Hz □
외부 치수 48×96×100mm(높이×폭×깊이)
다이얼 플레이트의 구멍 45×91mm
설치 방법 디스크로 설치

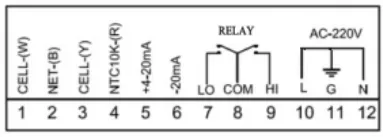

설치

EC/TDS-500/600



  • • 1. 전극의 흰색 단자를 측정한다.
  • • 2. 전극의 흑색 단자를 측정한다.
  • • 3. 전극의 노란색 단자를 측정합니다.
  • • 4. 전극의 빨간색 단자를 측정합니다.
  • • 5. 4-20mA 양극 단자
  • • 6. 4-20mA 음극 단자
  • • 7. 최소 제어 릴레이의 상시 개방 단자
  • • 8. 제어 릴레이의 공용 터미널
  • • 9. 최대 제어 릴레이의 상시 개방 단자
  • • 10. 전원 입력
  • • 11. 장비 접지선
  • • 12. 전원 입력

기기 작동

4.1 소프트 키 기능

소프트 키

주요 기능

기능 설명

EC/TDS-500/600

메뉴 키

측정 상태에서 관련 매개변수 “설정 메뉴”를 확인하거나 종료합니다.

EC/TDS-500/600

오른쪽 Shift 키

매개변수의 숫자를 선택하려면 오른쪽 Shift를 누르고,

EC/TDS-500/600

아래쪽 Shift 키

메뉴를 탐색하려면 아래로 이동하십시오.

선택한 매개변수 디지털 값 및 매개변수 이동을 변경합니다.

EC/TDS-500/600

키 확인

메인 인터페이스에서 온도 값을 확인하려면 메뉴를 선택하여 입력하고 매개변수를 저장합니다.

4.2 메인 메뉴 인터페이스 디스플레이

메인 인터페이스에서,누르세요“EC/TDS-500/600 ”메뉴 인터페이스의 키, 자세한 설명은 다음과 같습니다.

아니요.

메뉴

메뉴 내용

1

유엔티

측정 단위: ppm /uS 표시로 이동

2

범죄자

전극 상수 입력

3

H--C

릴레이 상한 폐쇄 값

4

호--

릴레이 상한 개방값

5

LC--

릴레이 하한 폐쇄 값

6

봐라--

릴레이 하한 오픈 값

7

dE--

지연 x 두 번째 알람

8

4--A

4mA 해당 전도도 값

9

20-A

20mA 해당 전도도 값

10

추가하다--

RS485 주소

11

보오드

RS485 전송 속도

12

CAL-

EC 교정 메뉴

13

FAC-

공장 설정

측정 전극 설치

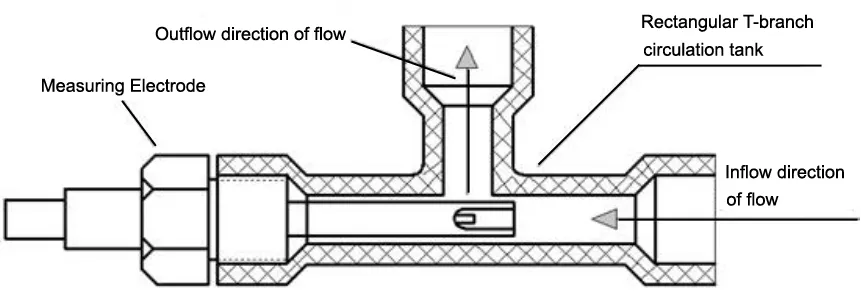

전극이 파이프라인에서 올바른 전도도를 측정하도록 하려면 전도도 셀의 전구 또는 역류로 인해 발생하는 데이터 부정확성을 방지해야 합니다. 다음 다이어그램에 따라 엄격하게 설치하십시오:

EC/TDS-500/600

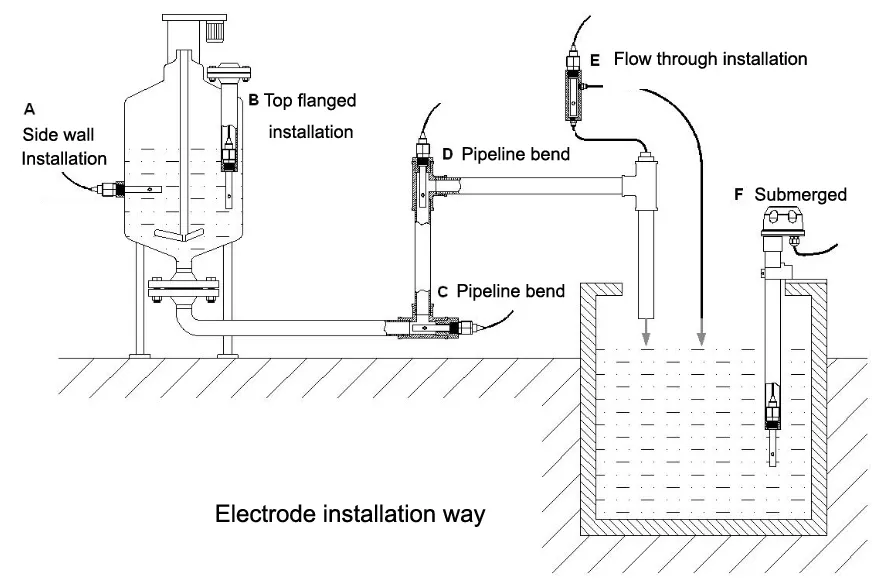

파이프라인을 설치하는 방법



EC/TDS-500/600



메모:

(1) 전극은 위치가 비교적 낮고 유속이 일정하며 공기벌브가 뭉치는 일이 적은 곳에 설치한다.

(2) 수평 설치 또는 수직 설치에 관계없이 컨덕턴스 셀은 흐르는 물 속으로 깊이 잠겨야 합니다.

(3) 전기신호가 약한 신호를 측정하는 측정케이블은 별도로 결선하여야 하며, 간섭을 피하기 위하여 전원선 및 제어선과 같은 전선군에 접속하지 않아야 한다.

(4)더 긴 측정 케이블이 필요한 경우 제조사에 문의하여 공급을 받으시기 바랍니다.

유지

6.1 측정전극은 정확한 전극이다. 전극을 분해하거나 모양이나 크기를 변경하거나 강산이나 강알칼리로 세척하지 마십시오. 이러한 작업으로 인해 전극의 상수가 변경되어 측정 정확도에 영향을 미칠 수 있습니다.

6.2 측정 케이블은 특수 케이블이므로 임의로 교체해서는 안 됩니다.

6.3 기기는 물방울이나 습기가 튀는 것을 방지하고 부정확한 측정을 방지하기 위해 건조한 환경이나 제어 상자에 설치해야 합니다.

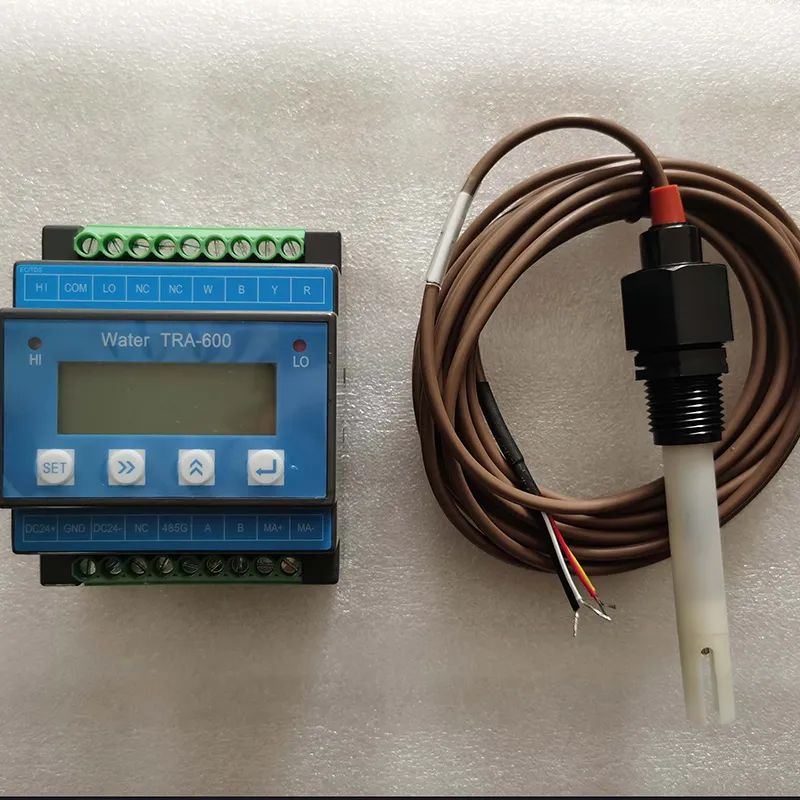

전체 세트로서의 악기

전도도/TDS 컨트롤러 1개

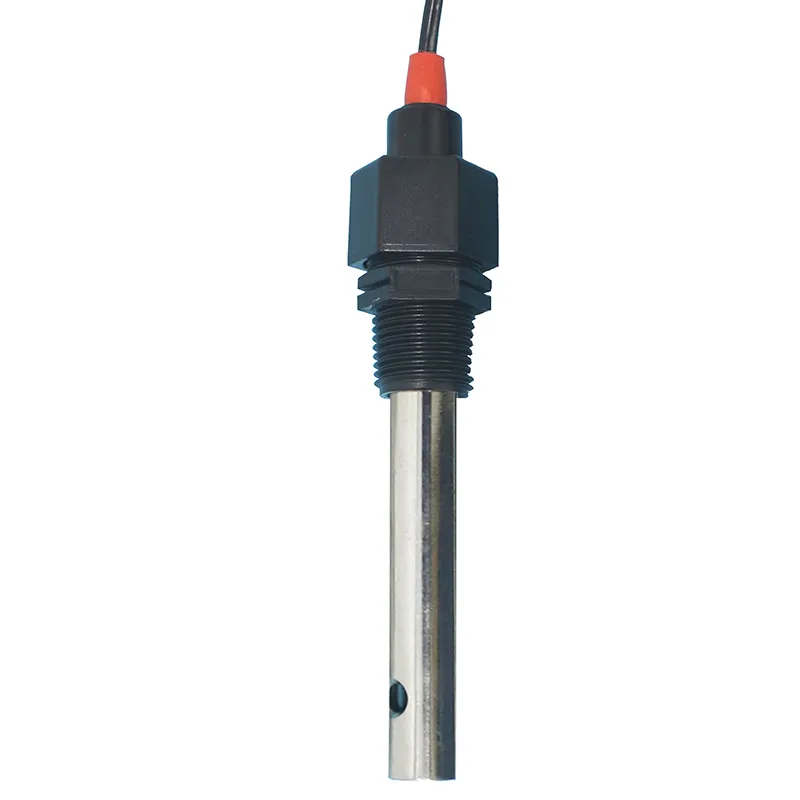

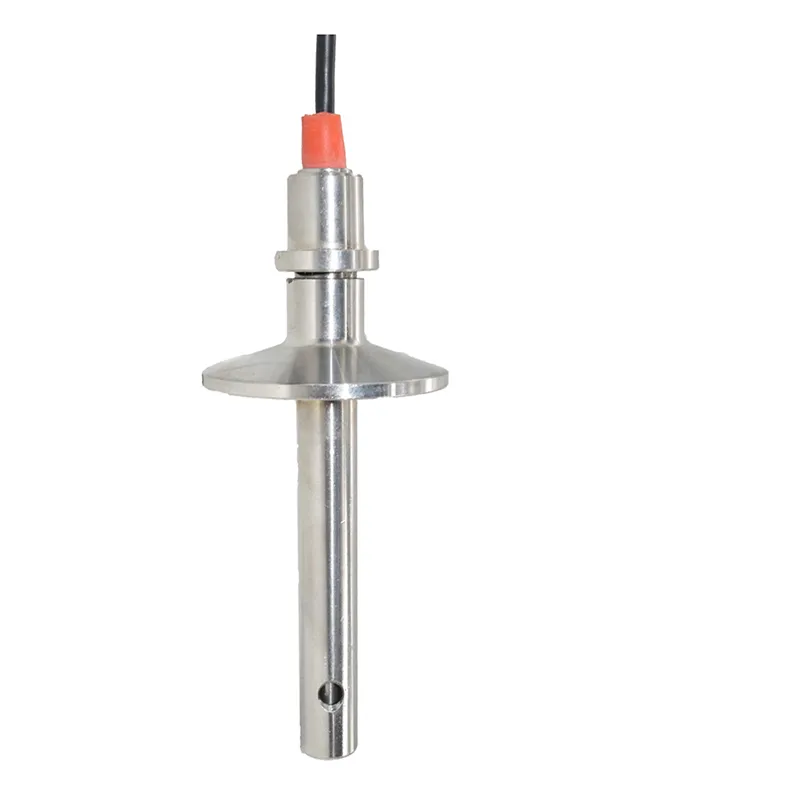

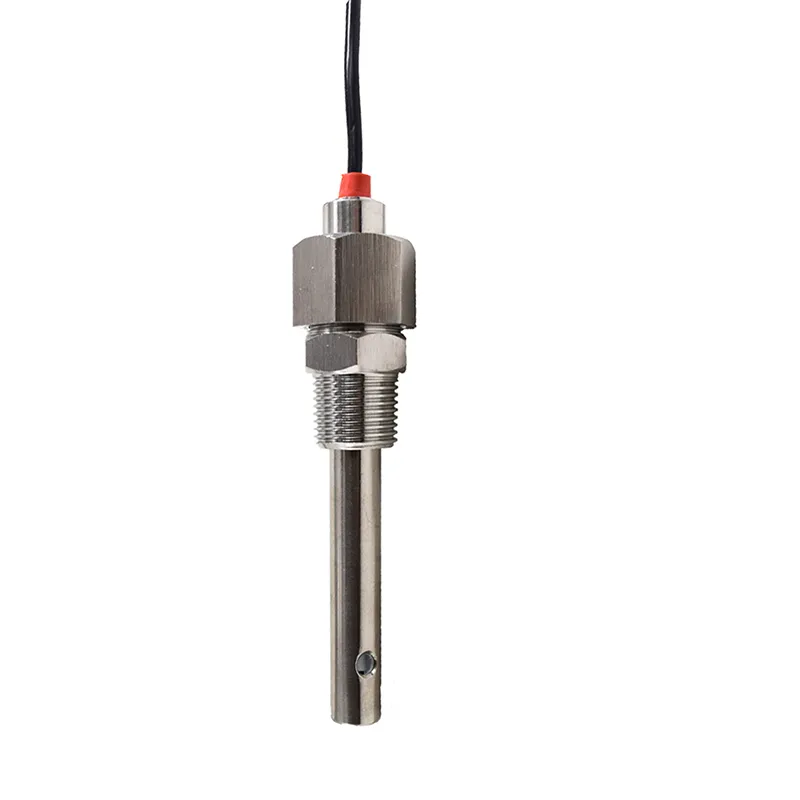

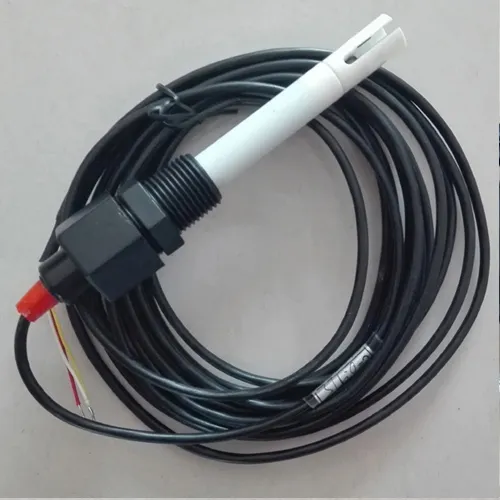

전도도/TDS 센서(1.0cm-1) 1개
고정 클램프 1쌍
사용설명서 1부



연락하세요

당사 제품에 관심이 있으시면 여기에 정보를 남겨주시면 곧 연락드리겠습니다.

* 이름

* 이메일

핸드폰

*메시지

자주 묻는 질문

EC/TDS-500/600에 대해 자주 묻는 질문(FAQ)

EC/TDS - 500/600은 무엇이며 어떤 시나리오에 사용됩니까?

Down Down

이는 수질 모니터링과 같은 시나리오에 사용되는 온라인 전도도/총 용존 고형물 컨트롤러입니다.

EC/TDS - 500/600 온라인 컨트롤러를 어떻게 설치합니까?

Down Down

적절한 위치를 선택하고 프로브를 설치한 후 라인을 연결하고 디버깅합니다.

EC/TDS - 500/600 컨트롤러를 어떻게 유지 관리하고 교정합니까?

Down Down

정기적으로 교정하고, 프로브를 청소하고, 회로가 정상인지 확인하십시오.

EC/TDS - 500/600 측정이 부정확한 이유는 무엇입니까?

Down Down

프로브 오류, 교정 오류, 환경 요인의 간섭.
