JIRS-803C4

이 샘플러는 최대 10m 깊이의 하수 우물에서 물 샘플을 수집할 수 있습니다. 리튬 배터리로 구동되며 3L 샘플링 병이 함께 제공되며 앱으로 구성할 수 있습니다.

Product Details

제품 세부정보

Contact Now

지금 연락하세요

제품 세부정보

제품 매개변수

작업 환경 최대 수심 15미터
단일 샘플링 볼륨 10-3000ml (조정가능)
샘플링 버킷 용량 3리터
샘플링 간격 2min-9999min (조정가능)
샘플링 볼륨 오류 ±7%
공급 전압

DC24V

배터리 용량

10아

전체 치수(길이 × 폭 × 높이)

225mm×225mm×610mm

작동 온도 5°C~40°C
기계 중량(물 제외) 6kg 이하
보호 수준 IP68



기능 특징

자동 샘플링 기능 기기는 시간 비율에 따라 자동 샘플링을 실현할 수 있으며 단일 샘플링 볼륨과 샘플링 시간을 설정할 수 있습니다.
자동 비우기 기능 기기가 자동 샘플링 기능을 선택하면 시스템은 각 샘플링 전후에 튜브의 물을 자동으로 배수하여 샘플링 파이프라인이 침전으로 막히지 않도록 할 수 있습니다.
자동 헹굼 기능 샘플러는 각 샘플링 전에 샘플링 파이프라인을 자동으로 헹구어 매번 수집된 샘플이 서로 간섭하지 않도록 할 수 있습니다.
누수 감지 기기에 누수가 발생하면 기기가 자동으로 작동을 멈추고 경보를 울립니다.
배터리 구동 샘플러는 내장된 리튬 배터리로 구동됩니다. 완전히 충전되면 연속 5일 동안 정상적으로 작동할 수 있습니다.
샘플링 기록 1000개의 기록을 저장할 수 있습니다.
앱 제어 샘플링 제어 및 매개변수 설정은 휴대폰 앱을 통해 수행할 수 있습니다.
다양한 사용 방법 외부 배터리 및 옵션으로 제공되는 웰헤드 브래킷을 지원합니다.



애플리케이션 개요

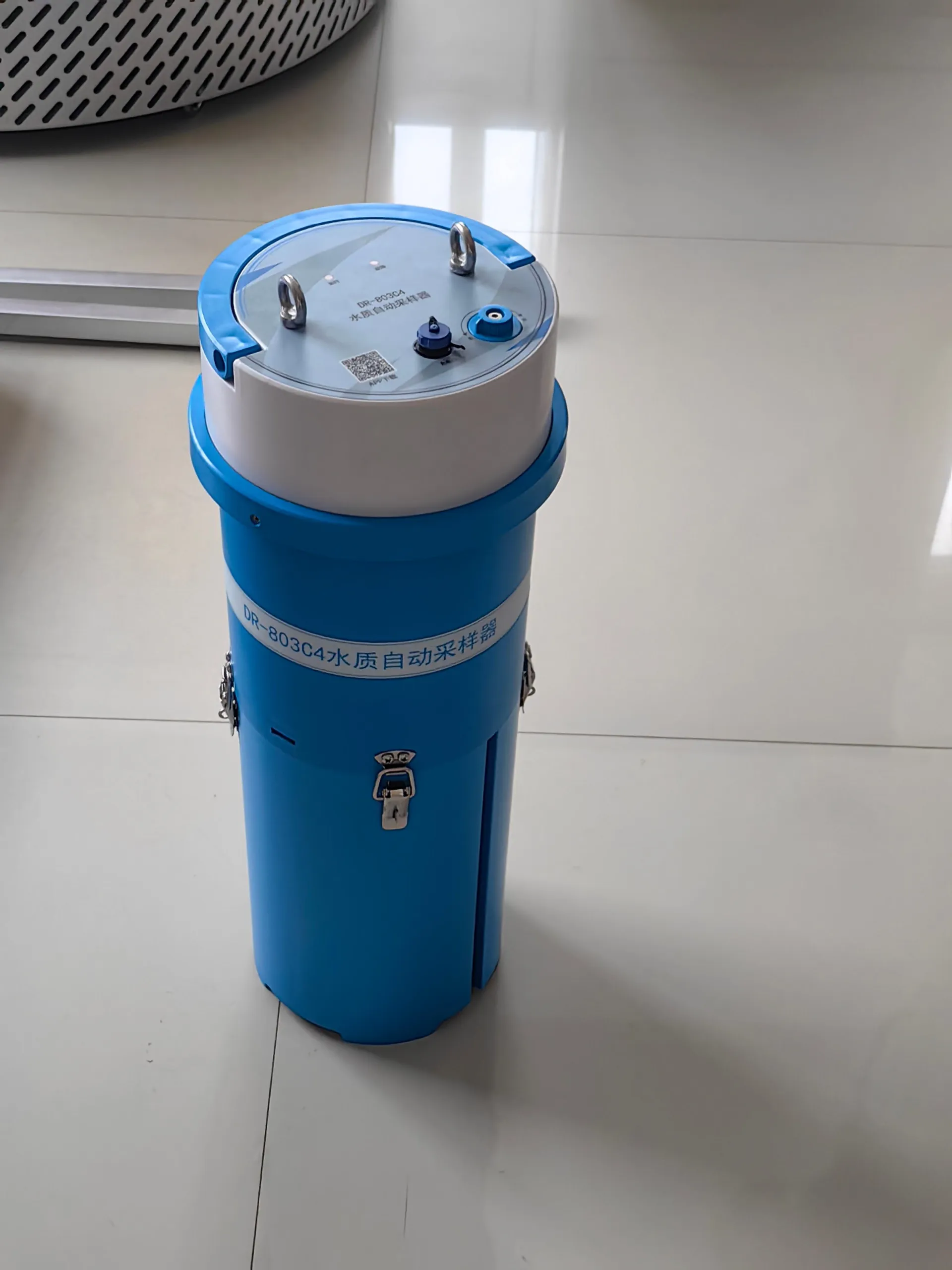

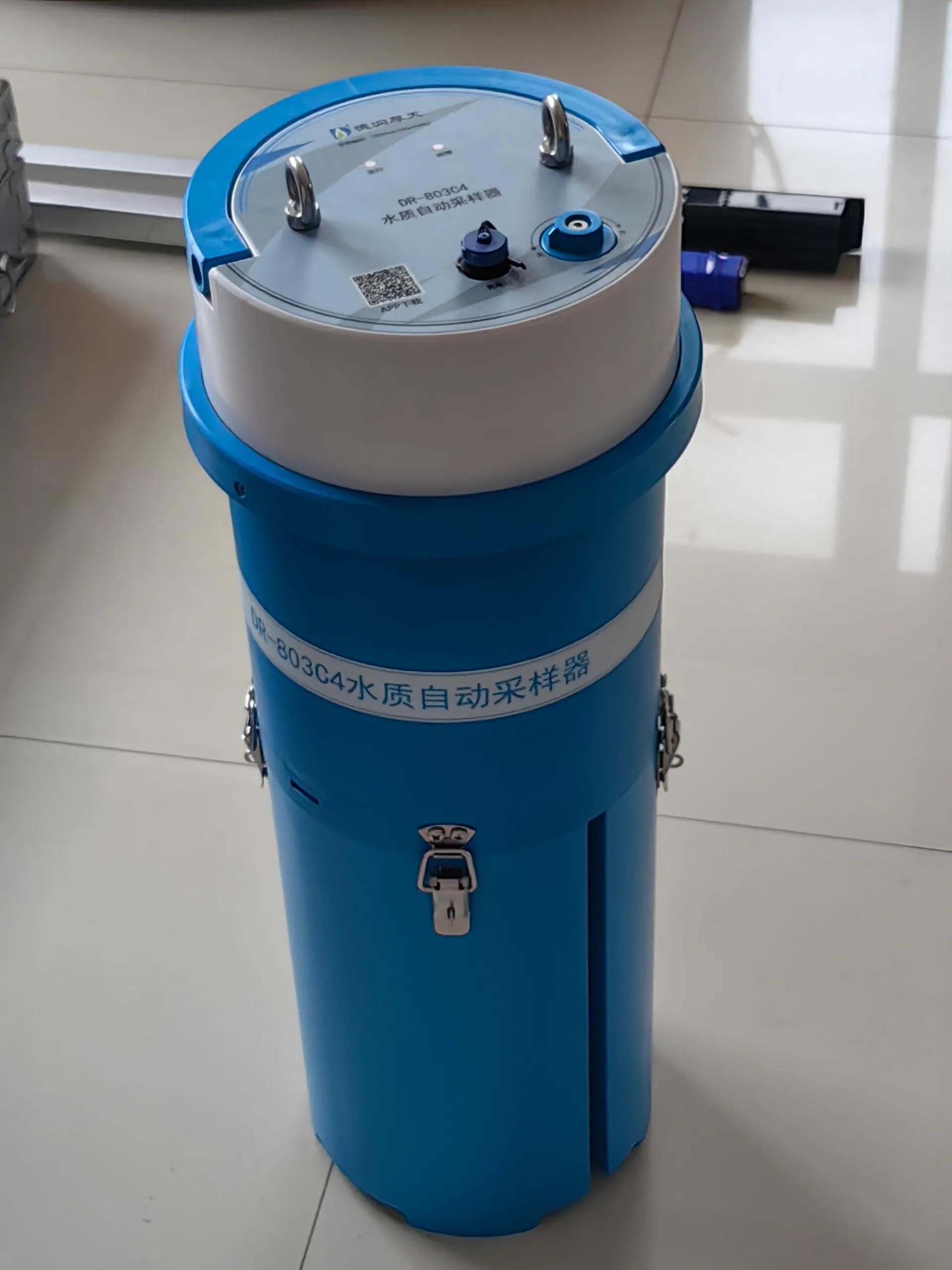

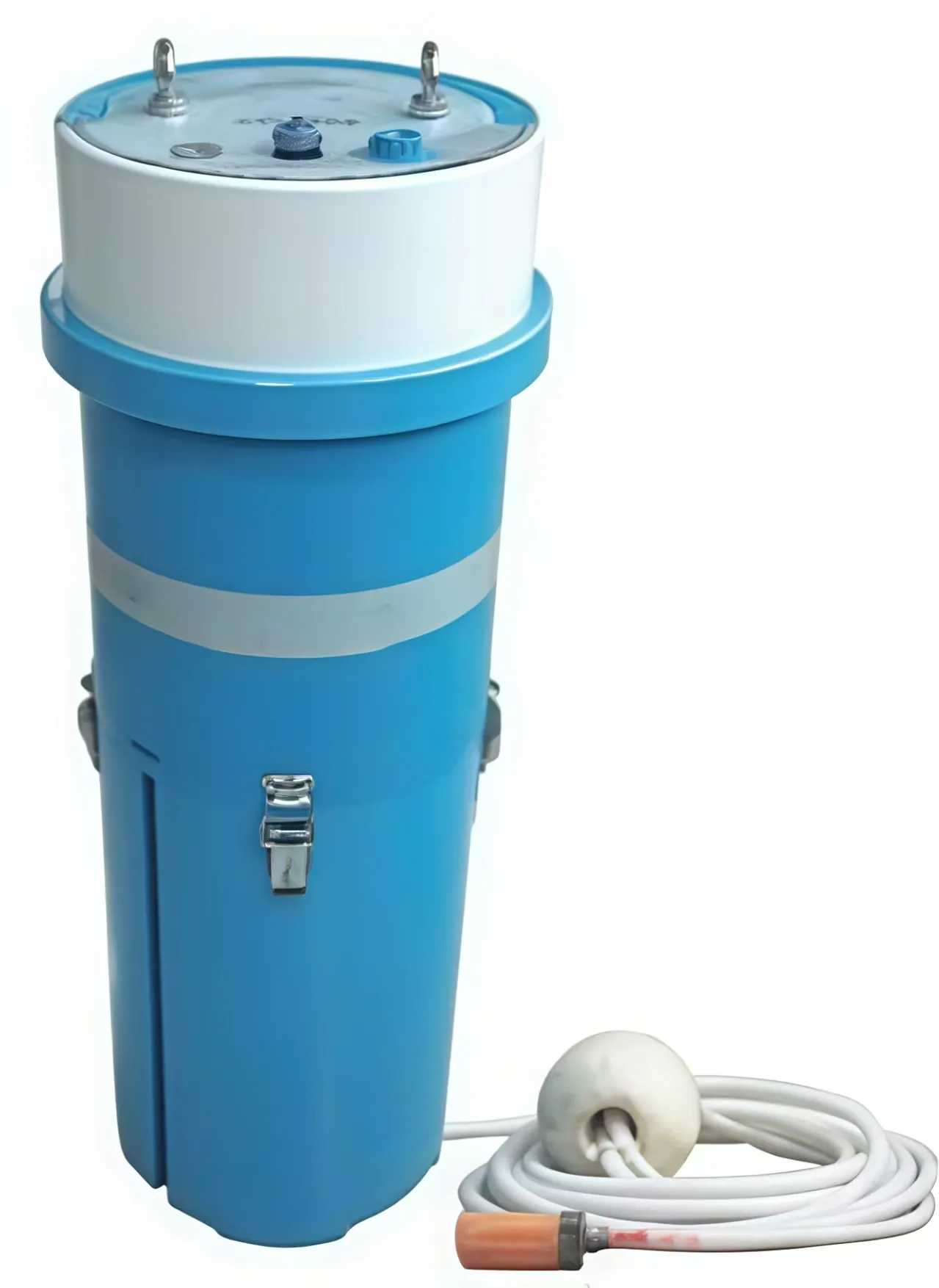

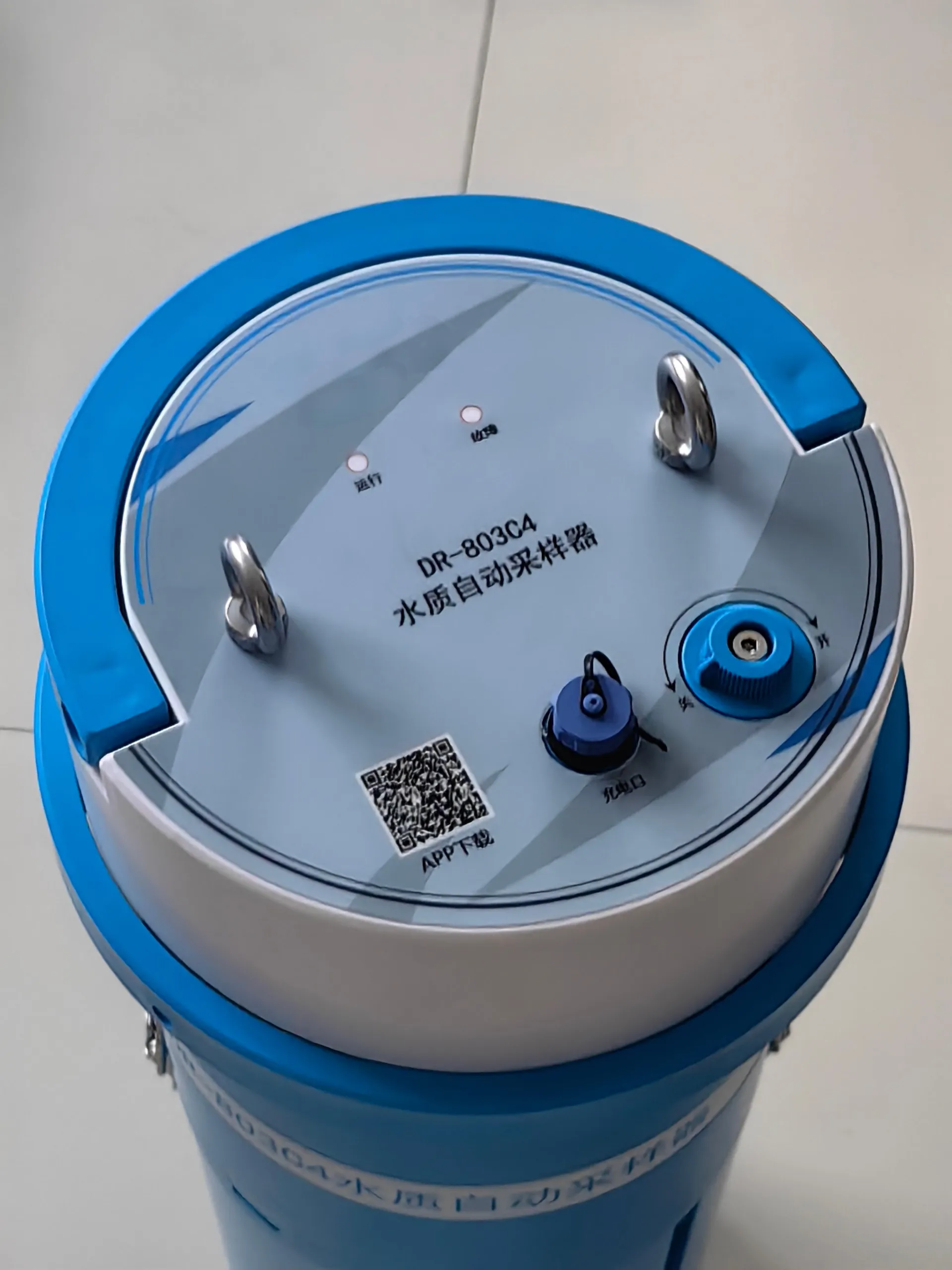

        DR-803C4 자동 채수 장치는 하수 우물에 사용되는 매달린 자동 채수 장치입니다. 리튬 배터리가 내장되어 있어 작고 가벼우며 휴대가 간편합니다. 원터치 작동 기능이 있으며 설정된 샘플링 볼륨에 도달하면 자동으로 샘플링을 중지합니다. 제3자 테스트 회사, 모니터링 기관, 도시 건설 부서 및 수자원 당국이 하수 우물을 장기간 무인 샘플링하는 데 이상적입니다.







연락하세요

당사 제품에 관심이 있으시면 여기에 정보를 남겨주시면 곧 연락드리겠습니다.

* 이름

* 이메일

핸드폰

*메시지

자주 묻는 질문

워터 샘플러에 대해 자주 묻는 질문 FAQ

DR-803C4 자동 채수 채취기는 어떻게 시료 간 교차 오염을 방지합니까?

Down Down

DR-803C4는 3단계 세척 시스템을 특징으로 합니다. 샘플링 전 헹굼: 신선한 물로 튜브를 자동 헹굼(1~99초 조정 가능); 샘플링 후 배수: 특허받은 사이펀 기술을 통해 잔류 액체를 완전히 배출합니다. UV 살균(옵션): 미생물 샘플링 용도

DR-803C4가 딥웰 샘플링(최대 10m)에 적합한 이유는 무엇입니까?

Down Down

주요 엔지니어링 솔루션: 가압 흡입 시스템: 최대 깊이에서 0.3MPa 흡입을 유지합니다. 군용 등급 케이블: IP68 방수 커넥터로 케블라 강화; 기울기 보상: 수직 샘플링을 보장하기 위한 ±15° 자동 조정.

정전 중에 샘플러가 작동할 수 있나요?

Down Down

예, 3가지 백업 모드 포함: 1. 10.4Ah 리튬 이온 배터리: 120시간 대기/5일 연속 작동; 2. 태양광 지원(24V DC 입력); 3. 기계적 오버라이드를 통한 비상 수동 샘플링.

누출 방지는 어떻게 작동합니까?

Down Down

TripleSafe™ 시스템은 다음을 감지합니다. 물 유입: 광학 센서가 즉시 종료를 트리거합니다. 튜브 균열: 유량 모니터링(±7% 공차); 배터리 단락: 갈바닉 절연 회로.

연동 펌프에는 어떤 유지 관리가 필요합니까?

Down Down

300-500시간 서비스 주기: 월별: 튜브 탄력성을 확인합니다(≥85% 반동률). 분기별: OEM 펌프 튜브(PN: DR-TUBE-803C)를 교체합니다. 연간: 롤러 어셈블리에 윤활유를 바릅니다(FDA 등급 그리스 포함).
