JIRS-803C

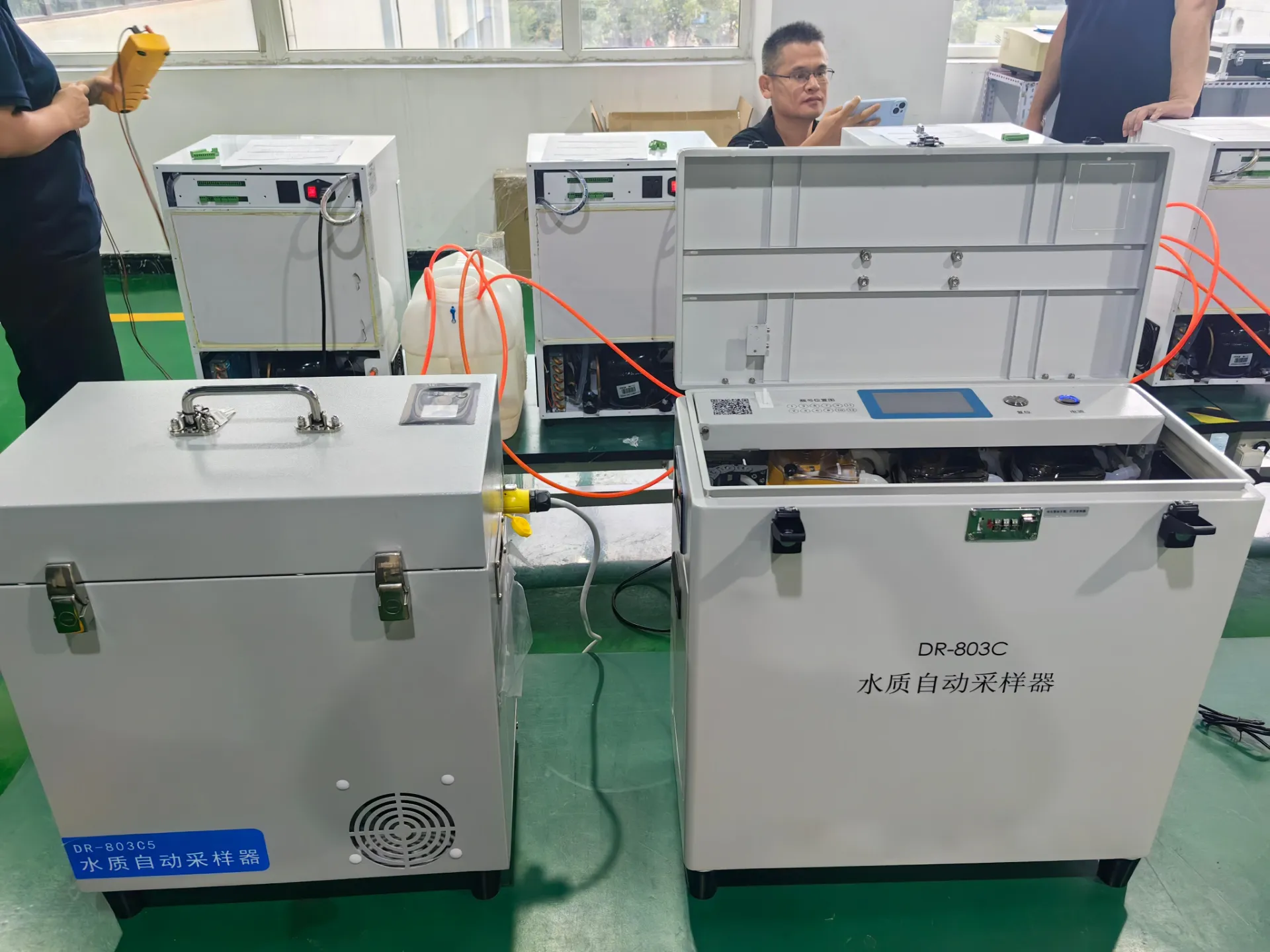

물 샘플러 DR-803C, 자동 물 샘플러는 주로 오염원, 강 및 호수 샘플링에 사용됩니다. 이 시스템은 컴팩트한 크기, 휴대성, 사용 편의성 및 다양한 작동이 특징입니다. 이 지능형 자동 채수기는 배터리와 AC 전원을 함께 사용하므로 휴대가 간편합니다.

Product Details

제품 세부정보

Contact Now

지금 연락하세요

제품 세부정보

제품 매개변수

샘플링 병 사양 : 1000ml×25병
단일 샘플링 볼륨 10ml~1000ml
샘플링 간격 (1~9999)분
연속 샘플링량 ≥48L
샘플링 볼륨 오류 ±7%
비례 샘플링량 오류 ±8%
샘플링 수직 높이 ≥8m
수평 샘플링 거리 ≥80m
절연저항 >20MΩ
아날로그 인터페이스 4mA~20mA
유량 측정 접근 방법 유량계 아날로그 신호
병렬성 오류 7% 이하
샘플링 흐름 >2L/분
샘플링 프로그램 9개 프로그램 저장
샘플링 기록 1000
오프닝 및 클로징 기록 1000
정전 기록 1000
물 들어오고 나가는 기록 1000
무게 22KGS
사용환경 옥외 사용
전원 전압 AC220V 또는 DC24V
작업 환경 온도 (0-50)℃
보호 수준 IP55
크기(길이×너비×높이)
530mm×350mm×520mm

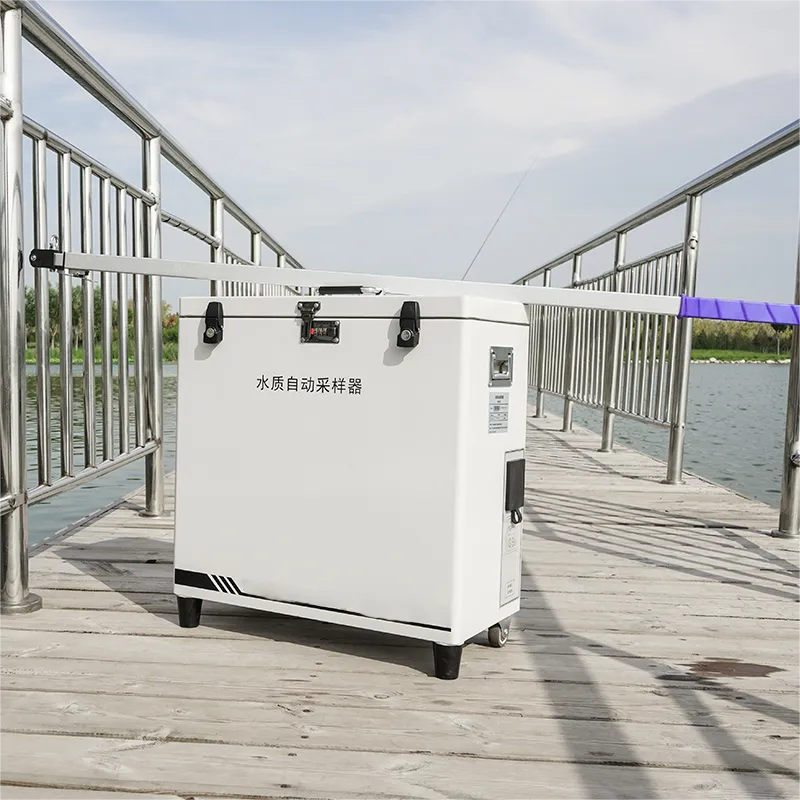

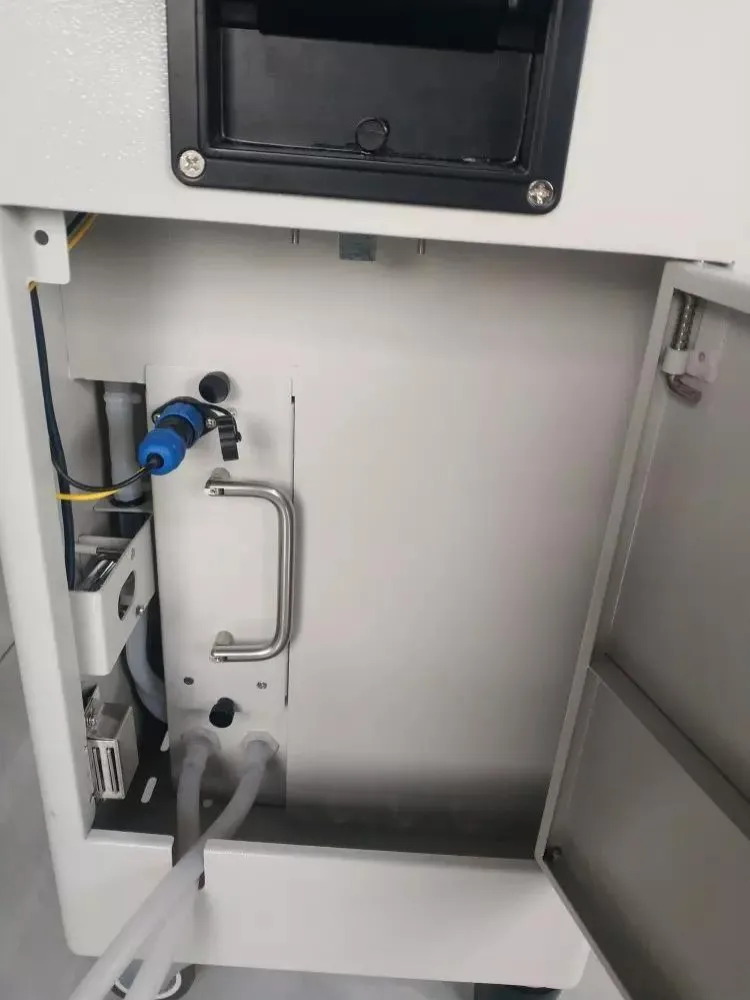

세부 이미지

JIRS-803C

JIRS-803C



기능 특징

다중 트리거 모드 Cn은 타이밍, 시간 비례, 흐름 비례 및 수동 샘플링, 동기 샘플링, 간헐적 샘플링 및 기타 트리거링 모드를 실현합니다.
병 샘플링 기능 단일 병 샘플링 및 다중 병 자동 병 샘플링을 실현할 수 있습니다.
혼합 샘플링 여러 번 수집된 물 샘플은 동일한 샘플링 병에 담을 수 있습니다.
샘플링 녹음 기능 샘플링 기록, 도어 개폐 기록, 정전 기록;
정전 보호 기능 기기의 전원을 끄고 실행 상태에서 다시 전원을 켜면 기기는 자동으로 원래 실행 상태를 복원할 수 있으며 기기 매개변수는 정전 후에도 손실되지 않습니다.
자동 비우기 각 샘플링 후에 파이프라인은 자동으로 비워지고 샘플링 헤드는 역세척됩니다.
자동 헹굼 각 샘플링 전에 파이프라인을 테스트할 물 샘플로 헹구어 샘플의 대표성을 보장합니다.
물 샘플 보관 실온에서 보관;
지연 시작 기능 지연 시간에 도달한 후 샘플링을 시작합니다.
배터리 전원 공급 장치 리튬 배터리 전원 공급 장치는 이틀 동안 기기의 정상적인 작동을 보장하는 데 사용됩니다.
외관 구조 나르게 쉬운 통합 디자인;
샘플링 프로그램 사용자는 일반적인 샘플링 프로그램을 설정하고 저장할 수 있습니다.
병렬 품질 관리 품질 관리를 위해 동시에 2개의 물 샘플을 수집할 수 있습니다.
선택적 기능 장비 위치 지정, 원격 작동 또는 보기, 간헐적 샘플링, 물 유입 및 유출 기록 등



애플리케이션 개요

         이 자동 수질 샘플러 시리즈는 주로 환경 모니터링 스테이션 및 제3자 테스트 기관에서 일일 샘플링에 사용됩니다. 샘플러를 하수 배출 장소에 배치하여 무인 자동 비례 샘플링을 실현함으로써 직원 점유 문제를 효과적으로 해결할 수 있습니다. 샘플러는 작동이 간단하고 휴대가 간편합니다. 모니터링 부서와 테스트 회사의 일상 업무에 없어서는 안될 도구입니다.







연락하세요

당사 제품에 관심이 있으시면 여기에 정보를 남겨주시면 곧 연락드리겠습니다.

* 이름

* 이메일

핸드폰

*메시지

자주 묻는 질문

워터 샘플러에 대해 자주 묻는 질문 FAQ

산업용 온라인 물 샘플러란 무엇이며 어떻게 작동합니까?

Down Down

산업용 온라인 물 샘플러(예: [제품 시리즈])는 화학적/물리적 분석을 위해 미리 설정된 간격으로 물 샘플을 수집하는 자동화 장치입니다. 그들은 프로그래밍 가능한 컨트롤러를 사용하여 파이프라인/강에서 대표 샘플을 추출하여 EPA 및 ISO 표준을 준수합니다. 주요 기능은 다음과 같습니다: 생물막 형성을 방지하기 위한 초음파 세척 SCADA 통합을 위한 4-20mA 출력 깊이 조정 가능한 프로브(심해 샘플링의 경우 최대 50m)

수동 샘플링 대신 온라인 샘플러를 선택하는 이유는 무엇입니까?

Down Down

온라인 샘플러는 인적 오류를 제거하고 다음을 제공합니다. pH, 탁도, 중금속과 같은 매개변수에 대한 실시간 데이터; 폭풍이나 긴급 상황 시 연중무휴 24시간 운영(예: LCRR에서 규정한 납 테스트) 수중유 분석을 위한 EPA 1664A 표준을 충족하는 관리 연속성 로그;

정확한 결과를 위해 물 샘플러를 유지 관리하는 방법은 무엇입니까?

Down Down

Hach 및 Burkert 시스템에서 파생된 유지 관리 프로토콜에는 다음이 포함됩니다. NIST 추적 가능한 표준을 사용한 월간 플로우 셀 교정; 분기별 센서 검증(예: 생물 부착용 EXO Sonde 와이퍼) 수중 배치에 대한 연간 씰 무결성 검사.

귀하의 샘플러는 부식성/고퇴적물을 처리할 수 있습니까?

Down Down

당사의 티타늄 내장 샘플러는 다음을 지원합니다: 사파이어 광학 창이 있는 산성 광산 배수(pH 2-4); 막힘 방지 유입구를 통한 높은 TSS 폐수(최대 10,000mg/L); IP68 등급 인클로저를 갖춘 해양 환경.

귀하의 샘플러에는 어떤 인증이 있습니까?

Down Down

준수 사항: 도시 사용을 위한 SDWA(안전한 식수법); 성능 테스트를 위한 ISO 15839; 위험 지역용 CE/ATEX(영역 1/21).
