JIRS-803C

Water Sampler DR-803C, Automatic water samplers are primarily used for sampling pollution sources, rivers, and lakes. The system features a compact size, portability, ease of use, and versatile operation. This intelligent automatic water sampler uses a combination of battery and AC power, making it easy to carry.

Product Details

Contact Now

Product Details

Product Paramenters

Sampling bottle	Specifications: 1000ml×25 bottles
Single sampling volume	10ml~1000ml
Sampling interval	(1～9999)min
Continuous sampling volume	≥48L
Sampling volume error	±7%
Proportional sampling volume error	±8%
Sampling vertical height	≥8m
Horizontal sampling distance	≥80m
Insulation resistance	>20 MΩ
Analog interface	4mA～20mA
Flow measurement access method	Flowmeter analog signal
Parallelism error	≤7%
Sampling flow	＞2L/min
Sampling program	Store 9 programs
Sampling records	1000
Opening and closing records	1000
Power failure records	1000
Water in and out records	1000
Weight	22KGS
Usage environment	Outdoor use
Power supply voltage	AC220V or DC24V
Working environment temperature	(0-50)℃
Protection level	IP55
Dimensions (length×width×height)	530mm×350mm×520mm

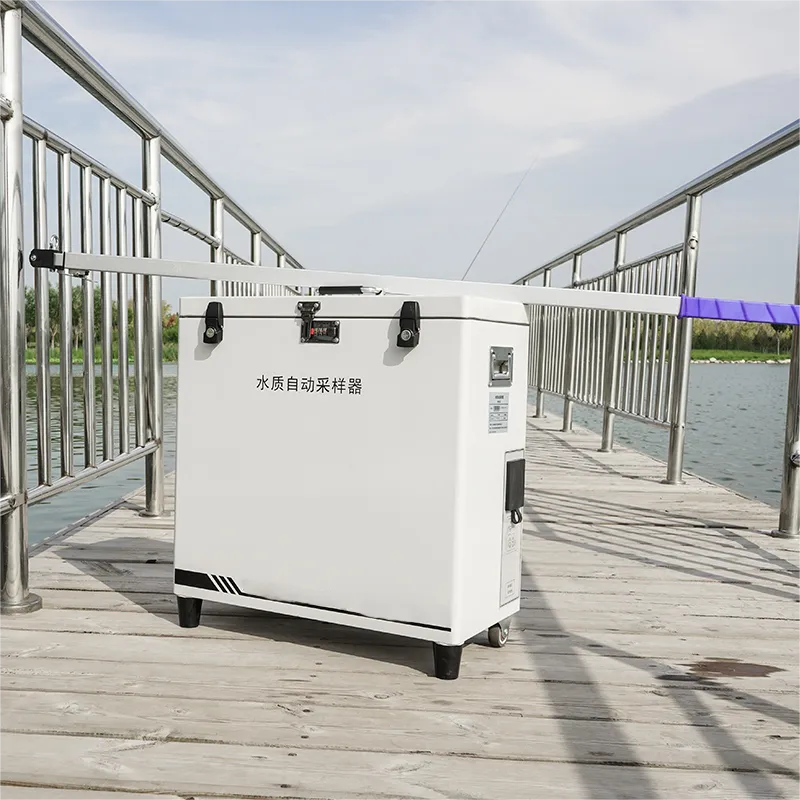

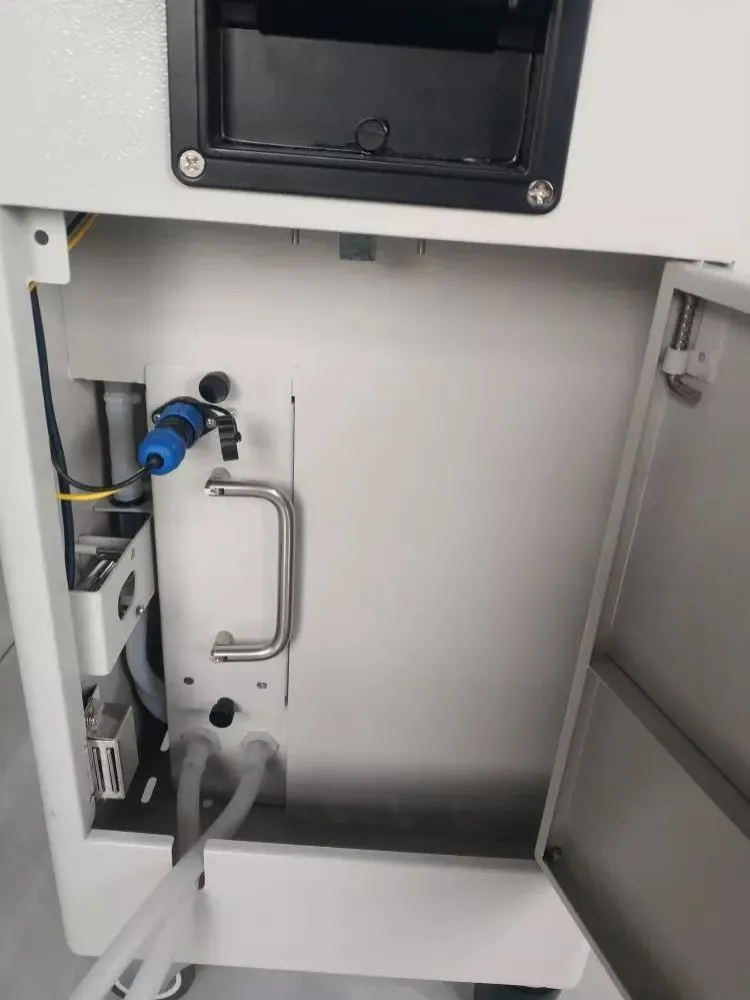

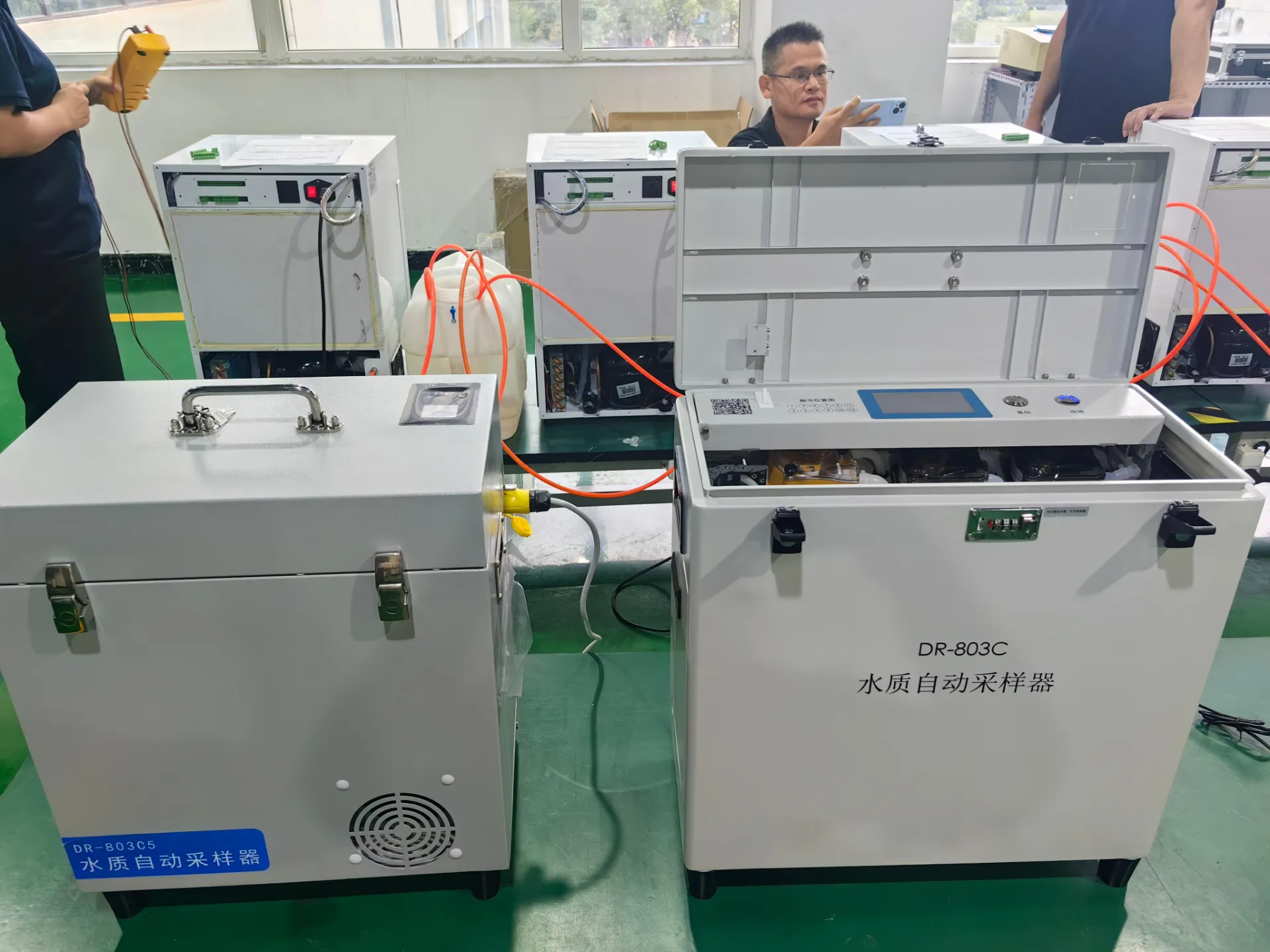

Details Images

Function Features

Multiple triggering modes	Cn realize timing, time proportional, flow proportional and manual sampling, synchronous sampling, intermittent sampling and other triggering modes;
Bottle sampling function	Can realize single bottle sampling and multi-bottle automatic bottle sampling;
Mixed sampling	Water samples collected multiple times can be placed in the same sampling bottle;
Sampling record function	With sampling record, door opening and closing record, power failure record;
Power failure protection function	After the instrument is powered off and powered on again in the running state, the instrument can automatically restore the original running state, and the instrument parameters will not be lost after power failure;
Automatic emptying	After each sampling, the pipeline is automatically emptied and the sampling head is backwashed;
Automatic rinsing	Before each sampling, the pipeline is rinsed with the water sample to be tested to ensure the representativeness of the sample;
Water sample storage	Stored at room temperature;
Delay start function	Start sampling after the delay time is reached;
Battery power supply	Lithium battery power supply is used to ensure the normal operation of the instrument for two days;
Appearance structure	Integrated design, easy to carry;
Sampling program	Users can set and save common sampling programs;
Parallel quality control	2 parallel water samples can be collected at one time to achieve quality control;
Optional functions	Equipment positioning, remote operation or viewing, intermittent sampling, water inlet and outlet records, etc.

Application Overview

This series of automatic water quality samplers are mainly used for daily sampling in environmental monitoring stations and third-party testing agencies. The samplers can be placed at the sewage discharge site to realize unattended automatic proportional sampling, which can effectively solve the problem of personnel occupancy. The sampler is simple to operate and easy to carry. It is an indispensable tool for the daily work of monitoring departments and testing companies.

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQS

Frequently Asked Questions FAQ About Water Sampler

What is an industrial online water sampler and how does it work?

Industrial online water samplers (like our [Product Series]) are automated devices that collect water samples at preset intervals for chemical/physical analysis. They use programmable controllers to extract representative samples from pipelines/rivers, ensuring compliance with EPA and ISO standards. Key features include: Ultrasonic cleaning to prevent biofilm buildup 4-20mA output for SCADA integration Depth-adjustable probes (up to 50m for deep-water sampling)

Why choose an online sampler over manual sampling?

Online samplers eliminate human error and provide: Real-time data for parameters like pH, turbidity, and heavy metals; 24/7 operation during storms or emergencies (e.g., LCRR-mandated lead testing); Chain-of-custody logs meeting EPA 1664A standards for oil-in-water analysis;

How to maintain water samplers for accurate results?

Maintenance protocols derived from Hach and Burkert systems include: Monthly flow cell calibration with NIST-traceable standards; Quarterly sensor validation (e.g., EXO Sonde wipers for biofouling); Annual seal integrity checks for underwater deployments.

Can your samplers handle corrosive/high-sediment water?

Our titanium-housed samplers support: Acid mine drainage (pH 2-4) with sapphire optical windows; High-TSS wastewater (up to 10,000 mg/L) via anti-clogging inlets; Marine environments with IP68-rated enclosures.

What certifications do your samplers have?

Compliant with: SDWA (Safe Drinking Water Act) for municipal use; ISO 15839 for performance testing; CE/ATEX for hazardous areas (Zone 1/21).
