LF55 Pressure Switch: Advanced Automation for Industrial Safety

The LF55 pressure switch is a critical component in modern industrial systems, designed to provide precise pressure monitoring and automatic control. Developed by **Hebei JIRS Import & Export Co., Ltd.**, this device ensures operational safety and efficiency in applications ranging from hydraulic systems to reverse osmosis setups. This article delves into its technical specifications, working principles, applications, and the company’s commitment to quality.

Introduction to the LF55 Pressure Switch

The LF55 pressure switch is an automatic control device that responds to pressure signals and operates accordingly. It serves as a safety protection measure in various devices such as pumps, hydraulic systems, and hydraulic machinery. Key features include:

  • International standard mounting bracket for universal compatibility.
  • SPDT (Single Pole Double Throw) switch for reliable contact switching.
  • Phosphor bronze bellows and brass pressure port for durability and precision.
LF55 Pressure Switch-Hebei JIRS Import & Export Co., Ltd.|Automatic Control,Safety Protection

*Product image of the LF55 pressure switch

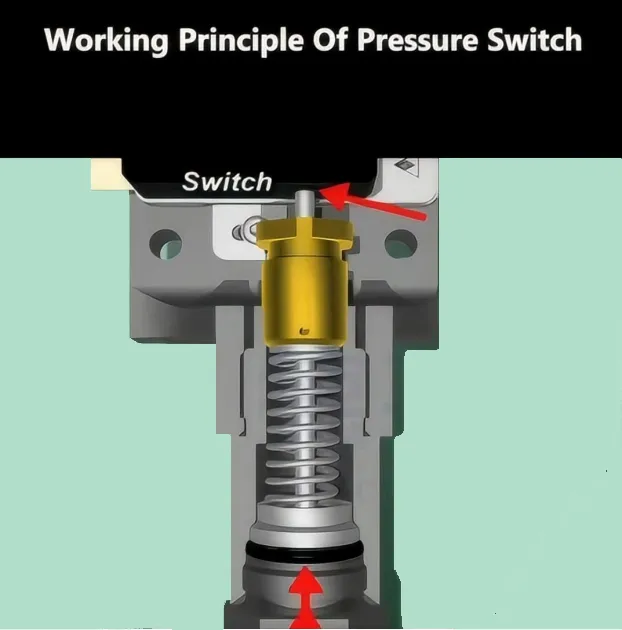

Working Principle of the LF55 Pressure Switch

The LF55 operates based on a mechanical principle involving spring tension adjustment. By turning the screw, users can modify the spring force, which directly impacts the switching point. Here’s how it works:

  1. Spring Adjustment: Tightening the screw increases spring tension, raising the pressure threshold for activation.
  2. Pressure Sensing: The pressure bellows or diaphragm deforms under external pressure, triggering mechanical movement.
  3. Contact Switching: When the pressure reaches the set point, the contacts close or open, altering the circuit’s conductivity.

This mechanism ensures the device can automatically regulate systems in applications like reverse osmosis, where maintaining precise pressure levels is critical.

Technical Specifications

The LF55 pressure switch offers a range of models tailored to specific pressure requirements. Below is a detailed specification table:

Model Range (bar) Differential (bar) Factory Setting (bar) Max Airtight Test Pressure (bar)
LF5502 -0.5 to 2 0.2–0.7 1 (OFF), 0.5 (ON) 16.5
LF5503 -0.5 to 3 0.35–1.5 2 (OFF), 1 (ON) 16.5
LF5506 -0.5 to 6 0.6–4 3 (OFF), 2 (ON) 16.5
LF5506M -0.5 to 6 ≤1 bar (reset) 3 (OFF), Manual Reset (ON) 16.5
LF5510 1–10 1–3 6 (OFF), 5 (ON) 16.5
LF5516 3–16 1–4 10 (OFF), 8 (ON) 35
LF5520 5–20 2–5 16 (OFF), 13 (ON) 35
LF5530 8–30 3–5 20 (OFF), 15–17 (ON) 35

Applications and Use Cases

The LF55 pressure switch is widely used in industries requiring precision pressure control. Key applications include:

  • Hydraulic systems: Ensuring safe operation by preventing overpressure.
  • Reverse osmosis systems: Maintaining optimal pressure for water filtration.
  • Pumps and compressors: Protecting equipment from damage due to pressure fluctuations.
  • Refrigeration systems: Monitoring ammonia refrigerant pressure (model LF5506B).

Its international standard mounting bracket allows easy integration into existing machinery, while the SPDT switch ensures reliable electrical contact switching.

Installation and Maintenance

Proper installation is crucial for the LF55’s performance. Key steps include:

  • Mounting: Use four M4 screws on the back of the controller. A multi-purpose mounting plate is included.
  • Wiring: Follow the wiring instructions to avoid errors.
  • Calibration: Adjust the screw to set the desired pressure threshold.

For detailed guidance, refer to the product manual.

Company Background: Hebei JIRS Import & Export Co., Ltd.

Based in Hebei, China, Hebei JIRS Import & Export Co., Ltd. specializes in providing high-quality industrial components. The company emphasizes compliance with international standards, ensuring its products meet rigorous safety and performance criteria. Their commitment to innovation and customer satisfaction has made them a trusted name in the industry.

Compliance with NIST Standards

The LF55 pressure switch aligns with NIST (National Institute of Standards and Technology) guidelines for precision and reliability. While specific NIST standards for pressure switches are not publicly detailed, the device’s design adheres to principles of metrology and measurement accuracy as outlined by NIST. For more information, visit the NIST website.

Reference: National Institute of Standards and Technology (NIST)

Conclusion

The LF55 pressure switch is a versatile and reliable solution for industrial pressure control. With its robust design, customizable models, and adherence to international standards, it is an essential component in modern systems. For more details, explore the product page or contact Hebei JIRS Import & Export Co., Ltd. directly.

Product Images

LF55 Pressure Switch-Hebei JIRS Import & Export Co., Ltd.|Automatic Control,Safety Protection LF55 Pressure Switch-Hebei JIRS Import & Export Co., Ltd.|Automatic Control,Safety Protection
LF55 Pressure Switch-Hebei JIRS Import & Export Co., Ltd.|Automatic Control,Safety Protection
